Application

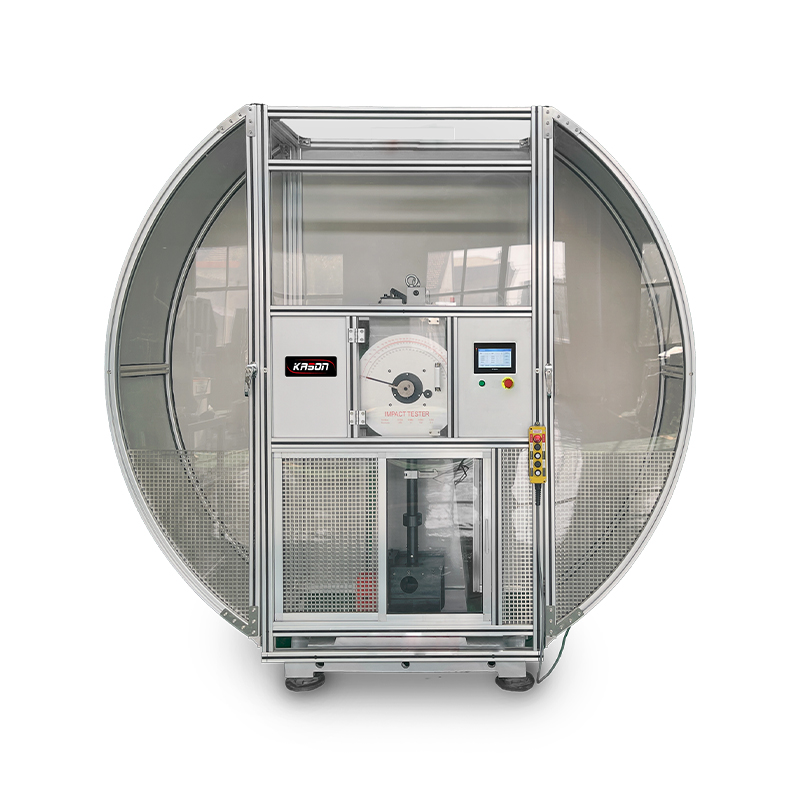

Pendulum Charpy Impact Testing Machine is used to determine the impact toughness of metal materialsunder dynamic load according to ISO148, ASTM E23 and EN 10045.
Digital Display type: adopting PLC Controller, the results can be displayed on both LCD digitalscreen and dial gauge. The test results also can be printed out with micro-printer.
Specifications
Model |
PIT320T |
PIT502T |
Type |
B |
|
Impact energy (J) |
150,300 |
250,500 |
Impact velocity (m/s) |
5.2 |
5.4 5.24 |
Raised angle |
150º |
|
Standard span (mm) |
40+0.2mm |
|
Distance between pendulum rotating center and specimen center |
750mm |
|
Round angle of jaws (mm) |
R1-1.5 |
|
Round angle of striking edge (mm) |
R2-2.5 or R8±0.05 |
|
Size of specimen (mm) |
10 x 10(7.5/5) x 55 |
|
Power supply |
3phs, 380V/220V±10%, VAC50Hz or specified |
|
Dimensions (mm) |
2124 x 600 x 1340
|
2144 x 736 x 1390 |
Gross weight(KG) |
550 |
750 |
