Wholesale Price Impact Strength Testing Machine Charpy Impact Tester Supplier
Application

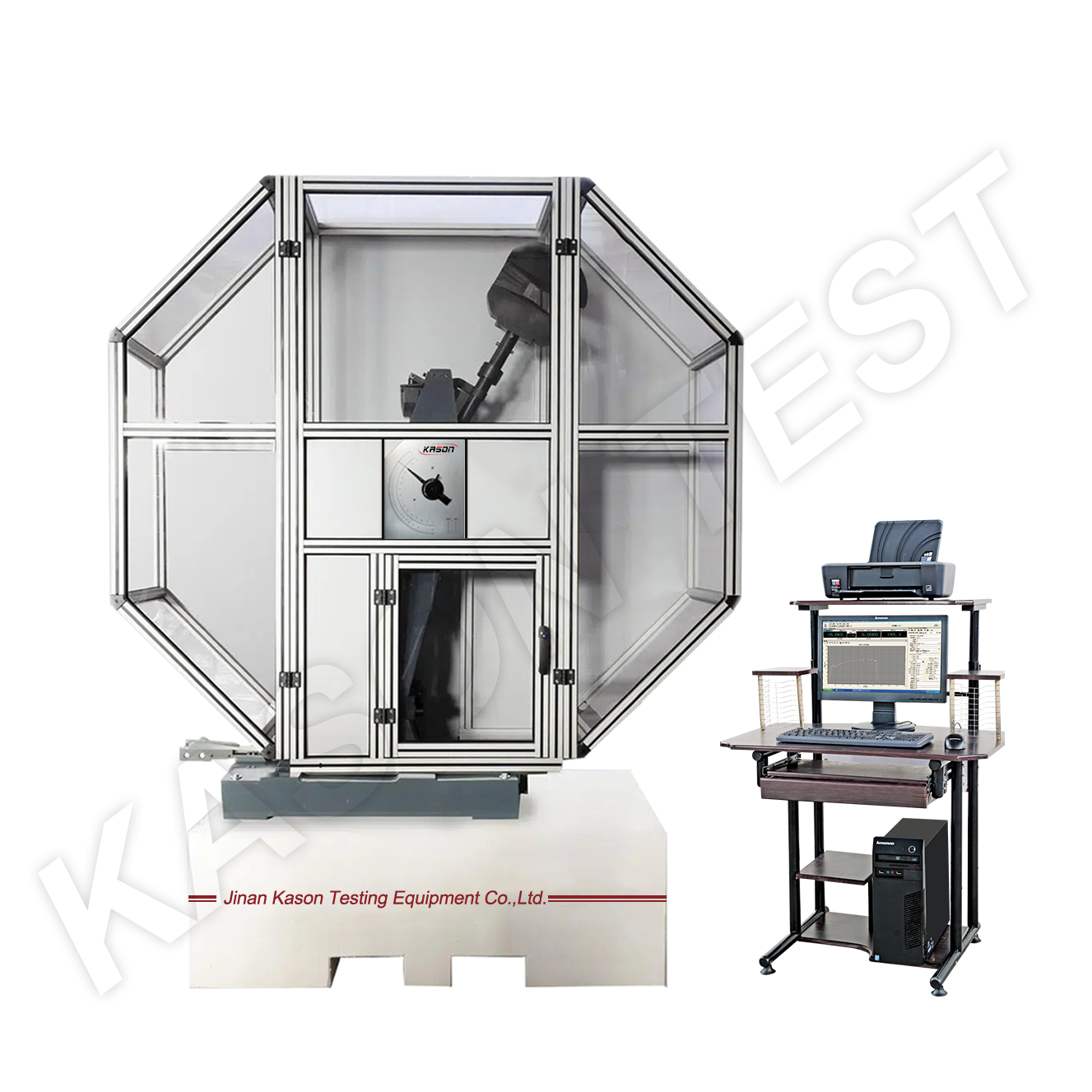

PIT-C Computer Control Semi-automatic Charpy Impact Testing Machine is used for measuring the Charpy impact resistance of metal and other materials
Standards:
ISO 148, EN10045, ASTM E23, GB/T 229, GB/T 12778, GOST 9574
Main Technical Specifications:
|
Model |
PIT302CW PIT302CT |
PIT452CW PIT452CT |
PIT602CW PIT602CT |
PIT752CW PIT752CT |
||
|
Control Method |
PIT-CW series is computer model, PIT-CT series is PLC control and LCD touch screen model |
|||||
|
Type |
C |
|||||
|
Max. impact energy(J) |
300 |
450 |
600 |
750 |
||
|
Pendulum Torque |
160.7695 |
241.1543 |
321.5390 |
401.9238 |
||
|
Distance from the axis of support to the center of percussion |
750mm |
|||||
|
Impact speed |
5.24 m/s |
|||||
|
Angle measurement resolution |
0.025° |
|||||
|
Raised angle |
150°±1° |
|||||
|
Round angle of the jaw |
R1-1.5mm |
|||||
|
Support |
Support span |
40mm |
||||
|
Radius of curvature of support |
1mm |
|||||
|
Angle of taper of supports |
11°±1° |
|||||
|
Striking knife
|
Radius of striking edge |
2mm |
||||
|
Angle of striking tip |
30° |
|||||
|
Angle of striking tip |
16mm |
|||||
|
Specimen dimension |
55×10×10,55×10×7.5mm,55×10×5mm |
|||||
|
Round angle of impact edge |
R2-2.5mm,R8±0.05mm |
|||||
|
Angle accuracy |
0.1° |
|||||
|
Power supply |
3phs, 380V/220V±10%, VAC50Hz or specified |
|||||
