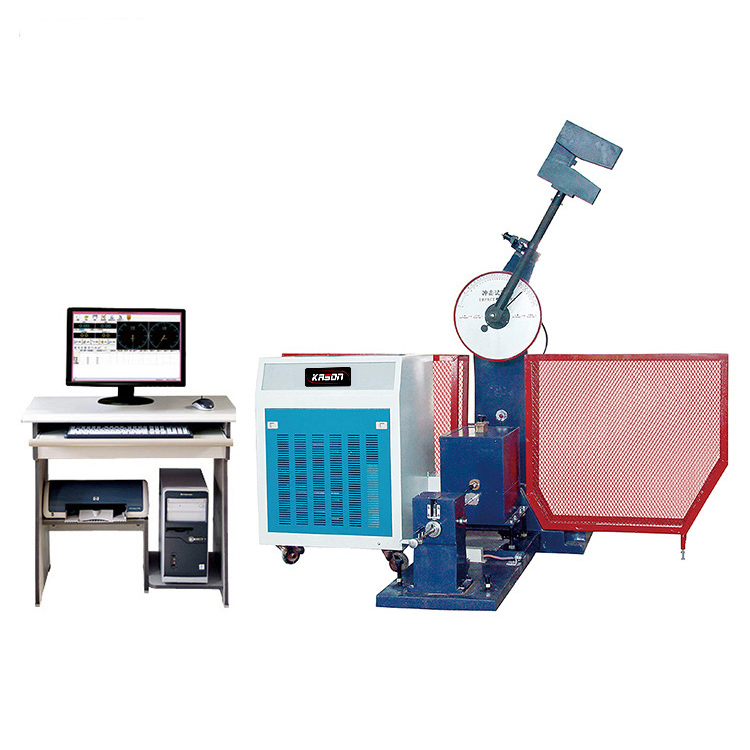

PIT502W 500j Impact Testing Machinecharpy Impact Test Equipment Price
Application:
Pendulum Charpy Impact Testing Machine is used to determine the impact toughness of metal materials under dynamic load according to ISO148, ASTM E23 and EN 10045. It is suitable for laboratory, metallurgy industry, machinery production, steel plant and other fields
Computer type: carry out the functions of zero clearing and automatic return, capturing the value of lost impact energy and pendulum cycle by means of setting up with computer program, and the results can be monitored, stored and printed out.
|
Model |
PIT302W |
PIT502W |
|
Type |
B |
|
|
Max. impact energy |
150J, 300J |
250J,500J |
|
The distance between the pendulum shaft and impact point |
750mm |
800mm |
|
Impact speed |
5.2M/S |
5.4 m/s |
|
Raised angle |
150° |
|
|
Standard span |
40+0.2mm |
|
|
Round angle of the jaw |
R1-1.5mm |
|
|
Round angle of impact edge |
R2-2.5mm,R8±0.05mm |
|
|
Angle accuracy |
0.1° |
|
|
Standard specimen dimension |
10mm×10(7.5/5)mm×55mm |
|
|
Power supply |
3phs, 380V/220V±10%, VAC50Hz or specified |
|
|
Dimensions (mm) |
2124 x 600 x 1340 |
2144 x 736 x 1390 |
|
Net Weight (kg) |
550 |
750 |
