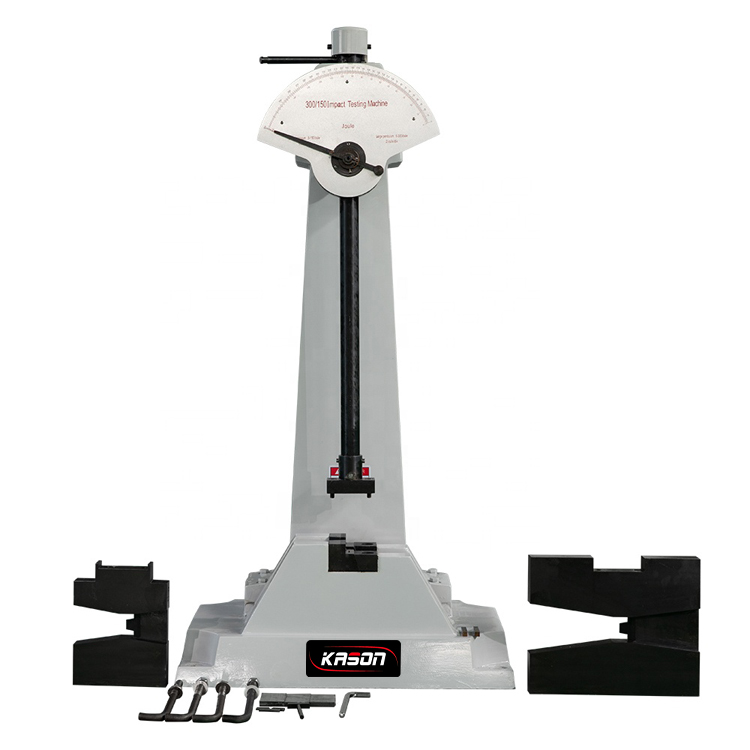

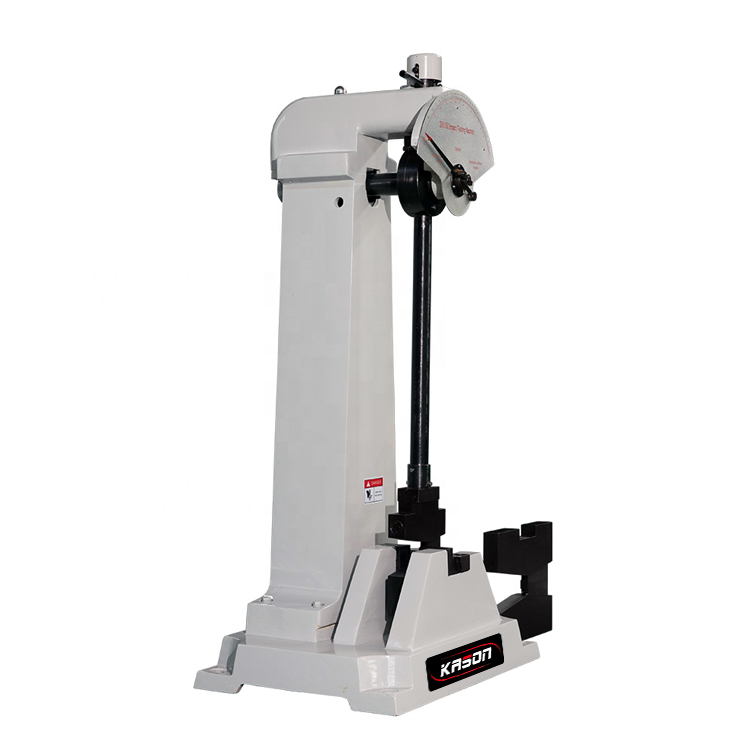

Good Quality Pendulum Izod And Charpy Impact Testing Equipment
Application
PIT-302 Manual Impact Testing Machine is used for measuring the metal material resistance performanceunder dynamic load, in order to determine the material properties under dynamic load.
Main Technical Specifications:
|
Model |
PIT302 |
|
Type |
B |
|
Reading Of Dia |
0-150J (1J/Grid); 0-300J(2J/Grid) |
|
Impact Energy |
150J, 300J |
|
The Distance Between The Pendulum Shaft And Impact Point |
800mm |
|
Impact Speed |
5.2 m/s |
|
Pre-rising Angle Of The Pendulum |
135° |
|
Specimen Bearer Span |
40+0.2mm |
|
Round Angle Of The Jaw |
R1-1.5mm |
|
Round Angle Of Impact Edge |
R2-2.5mm |
|
Angle Accuracy |
0.1° |
|
Power Supply |
Manual |
|
Standard Specimen Dimension |
10mm×10mm×55mm |
|
Dimensions (mm) |
1000×630×1520mm |
|
Net Weight (kg) |
320KG |
