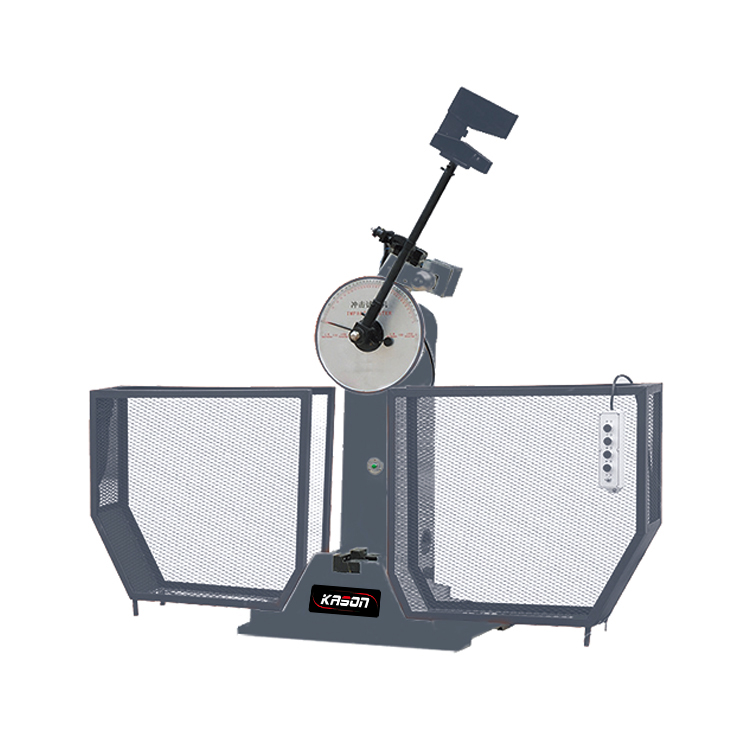

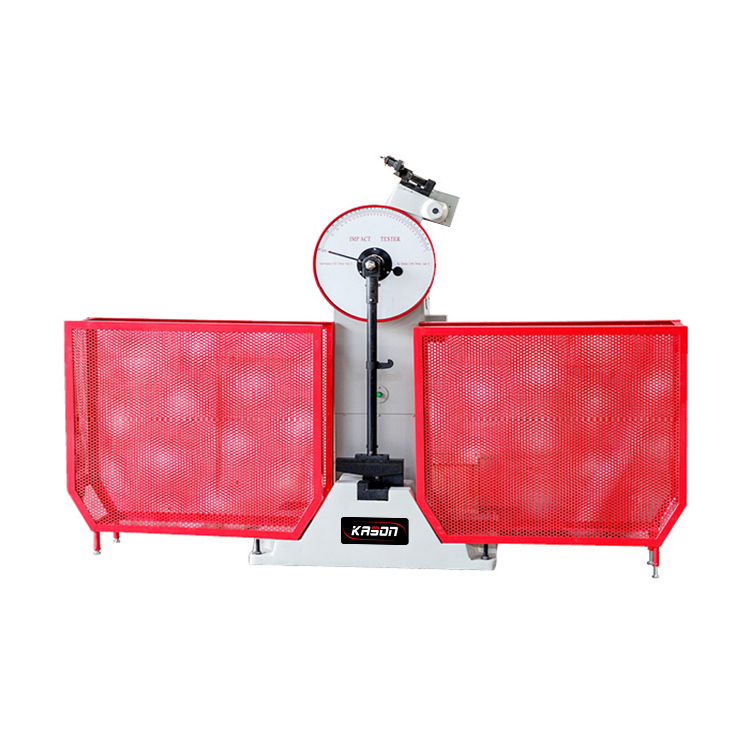

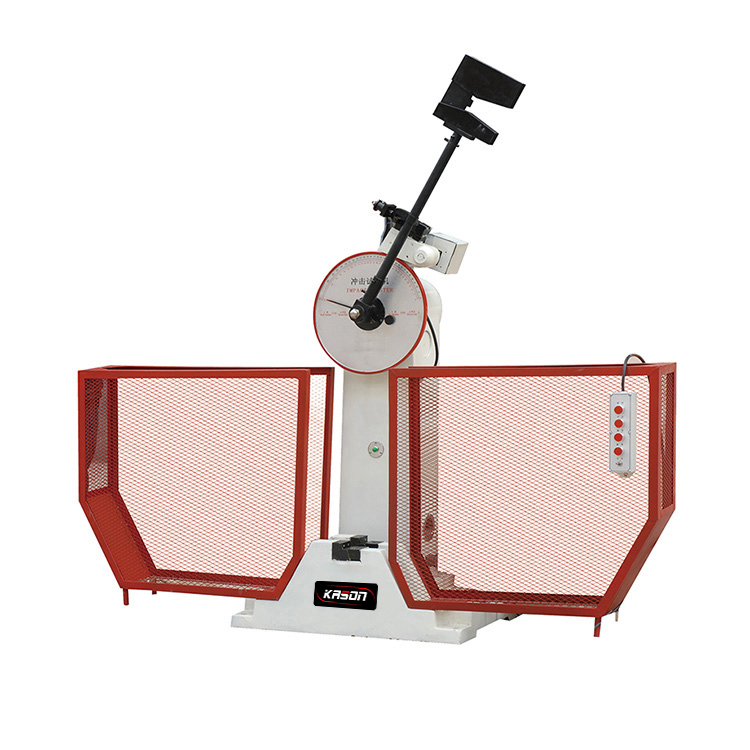

Charpy Impact Testing JB300b Testing Machine Impact 300j Impact
1,Application
Pendulum Charpy Impact Testing Machine is used to determine the impact toughness of metal materialsunder dynamic load according to ISO148, ASTM E23 and EN 10045. It is suitable for laboratory, metallurgyindustry, machinery production, steel plant and other fields.
Semi-automatic type:it features as pendulum to be raised or released automatically, dial gaugeto show the impact energy. It is easy to operate with high efficiency.
2, Specifications
|
MODEL |
PIT302M |
PIT502M |
|
Type |
B |
|
|
Impact energy (J) |
150,300 |
250,500 |
|
Impact velocity (m/s) |
5.2 |
5.4 5.24 |
|
Raised angle |
150º |
|
|
Standard span (mm) |
40+0.2mm |
|
|
Distance between pendulum rotating center and specimen center |
750mm |
|
|
Round angle of jaws (mm) |
R1-1.5 |
|
|
Round angle of striking edge (mm) |
R2-2.5 or R8±0.05 |
|
|
Size of specimen (mm) |
10 x 10(7.5/5) x 55 |
|
|
Power supply |
3phs, 380V/220V±10%, VAC50Hz or specified |
|
|
Dimensions (mm) |
2124 x 600 x 1340
|
2144 x 736 x 1390 |
|
Gross weight(KG) |
550 |
750 |
