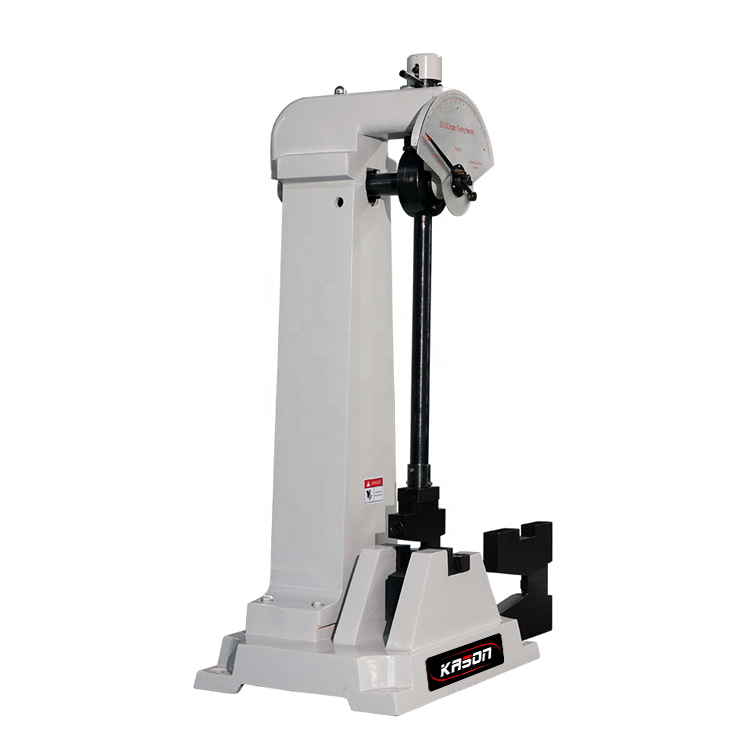

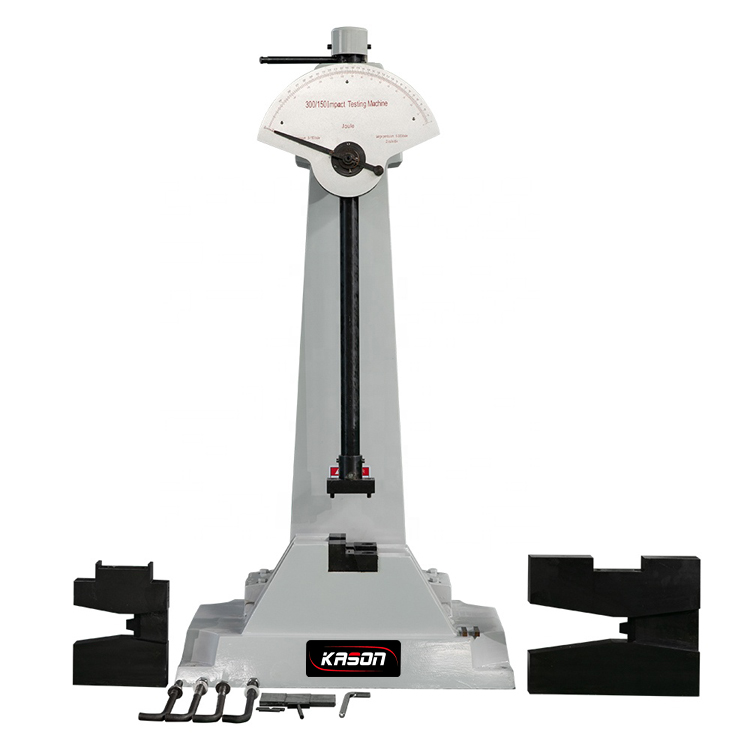

JB Series Manual Impact Testing Machine/Metal Charpy Impact Testing Equipment
1. Application
JB type impact testing machine/ Metal Charpy Impact Testing Equipment is used for measuring the metal material resistance performance under dynamic load, in order to determine the material properties under dynamic load.
2. Standards:
ISO148, EN10045, ASTM E23, GB/T3808-2002 ,GB/T229-2007
3. Main Technical Specifications:
|
Model |
JB-300 |
|
Reading of dia |
0 - 150J (1J/grid); 0 - 300J(2J/grid) |
|
impact energy |
150,300J |
|
The distance between the pendulum shaft and impact point |
750mm |
|
Impact speed |
5.2m/s |
|
Pre-rising angle of the pendulum |
150° |
|
Specimen bearer span |
40+0.2mm |
|
Round angle of the jaw |
R1-1.5mm |
|
Round angle of impact edge |
R2-2.5mm |
|
Angle accuracy |
0.1° |
|
Power supply |
Manual |
|
Standard specimen dimension |
10mm×10mm×55mm |
|
Dimensions (mm) |
1000×630×1520mm |
|
Net Weight (kg) |
320Kg |
4. Configurations:
4.1 Main unit----------1 set
4.2Pendulum-----2 pcs
4.3 Span specimen plate (L = 40mm)----1 pc
4.4 Specimen centering plate (L = 40mm)(U, V)----1 pc
4.5 Stripping attachment----1 pc
4.6 Internal hexagonal wrench (S=12mm)---1 pc
4.7 Anchor bolts (M16x300mm)---4 pcs
