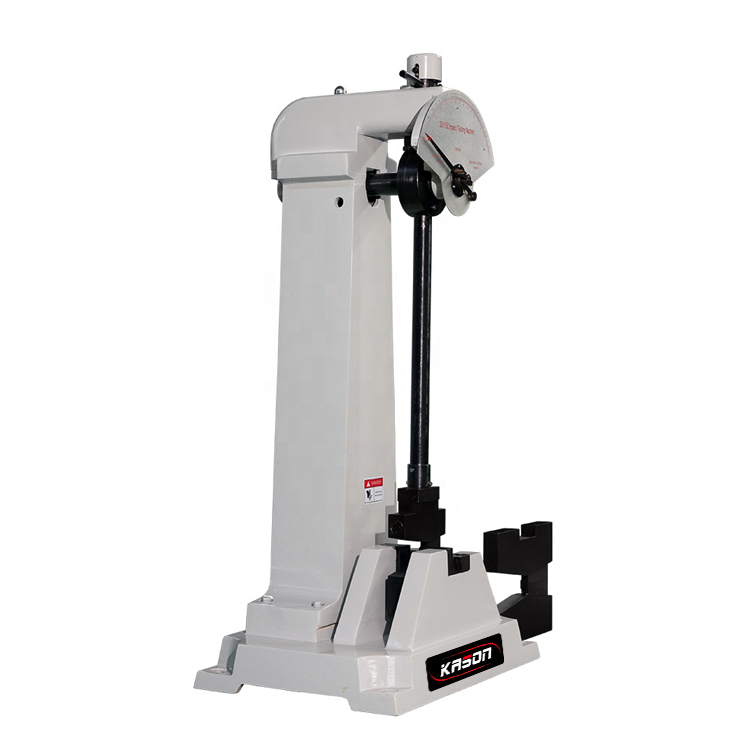

JB-300 150J To 300J Manual Charpy Pendulum Impact Testing Machine Tester For Sale
1. Application
JB-300 Manual Impact Testing Machine is used for measuring the metal material resistance performance
under dynamic load, in order to determine the material properties under dynamic load.
2. Standards:
ISO148, EN10045, ASTM E23, GB/T3808-2002, GB/T229-2007.
3. Main Technical Specifications:
|
Model |
JB-300 |
|
Reading Of Dia |
0-150J (1J/Grid); 0-300J(2J/Grid) |
|
Impact Energy |
150J, 300J |
|
The Distance Between The Pendulum Shaft And Impact Point |
800mm |
|
Impact Speed |
5.2 m/s |
|
Pre-rising Angle Of The Pendulum |
135° |
|
Specimen Bearer Span |
40+0.2mm |
|
Round Angle Of The Jaw |
R1-1.5mm |
|
Round Angle Of Impact Edge |
R2-2.5mm |
|
Angle Accuracy |
0.1° |
|
Power Supply |
Manual |
|
Standard Specimen Dimension |
10mm×10mm×55mm |
|
Dimensions (mm) |
1000×630×1520mm |
|
Net Weight (kg) |
320KG |
4. Features:
4.1 The principle machine of the testing machine has single supporting column structure, cantilever type pendulum hanging mode; the pendulum body is U-shaped
4.2 The impact cutter is installed and fixed by screws and is convenient and easy to be replaced;
4.3 Safety guard pin is arranged on the principle machine which is also provided with safety guard net
