1. Capacity:
150J,300J,450J,600J,750J 2. Application

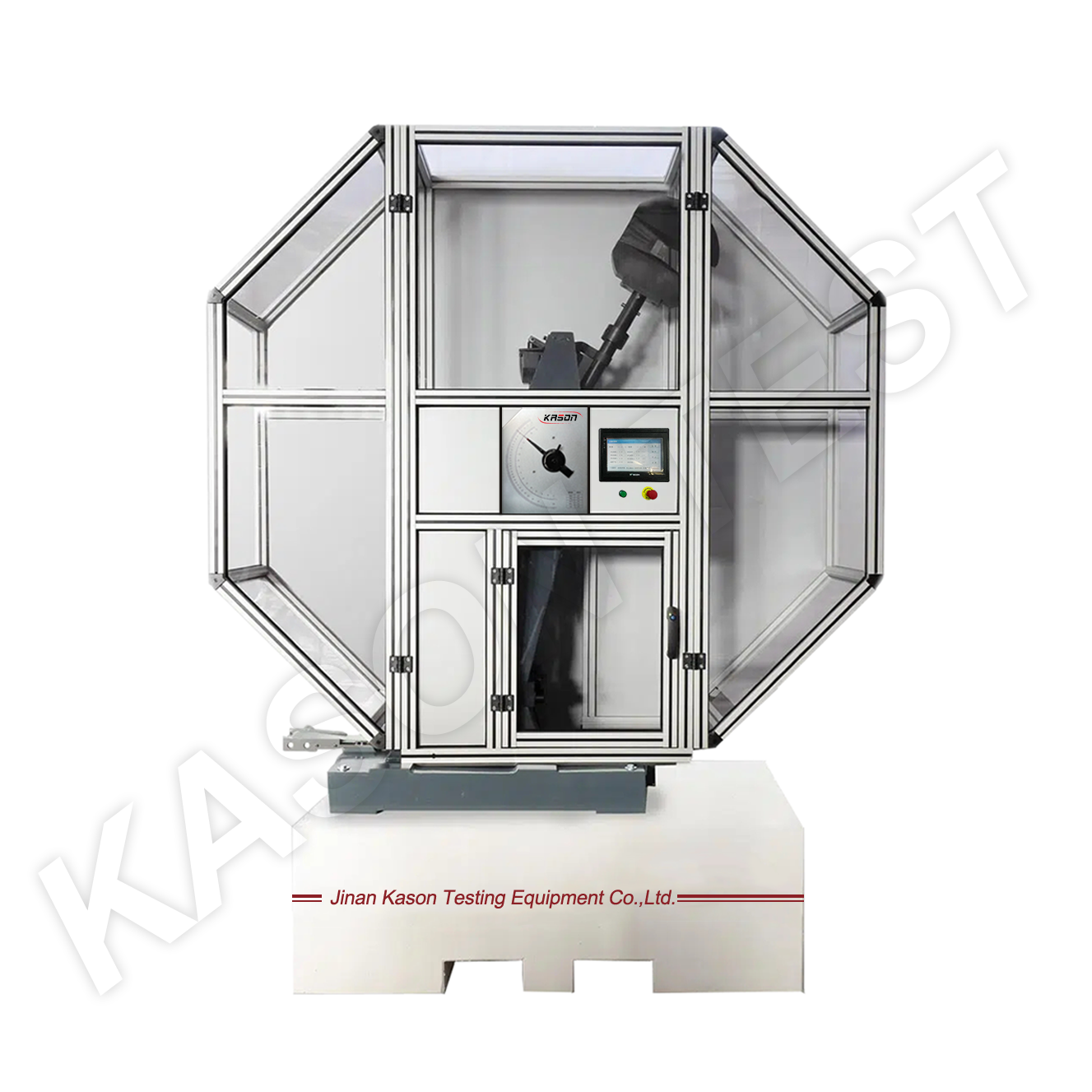

JBS-C Computer Control Semi-automatic Charpy Impact Testing Machine is used for measuring
the metal material resistance performance under dynamic load,in order to determine the material
properties under dynamic load.
It’s a necessary testing machine,not only used in the metallurgy,machine manufacture etc areas,
but also used for the science research. 3. Standards:
ASTM E23, ISO148-2006 and GB/T3038-2002, GB/229-200,ISO 138,EN10045. 4. Main Technical Specifications:
Model
JBS-300C
JBS-450C
JBS-600C
JBS-750C
Max. impact energy(J)
300
450
600
750
Pendulum Torque
160.7695
241.1543
321.5390
401.9238
The distance between the
pendulum shaft and impact point
750mm
Impact speed
5.24 m/s
Raised angle
150°
Round angle of the jaw
R1-1.5mm
Round angle of impact edge
R2-2.5mm,R8±0.05mm
Angle accuracy
0.1°
Standard specimen dimension
10mm×10(7.5/5)mm×55mm
Power supply
3phs, 380V, 50Hz or specified by users
Net Weight (kg)
900
5. Features:
5.1 One-body cast frame design of seat and column provide high stability.
5.2 Front and rear columns are symmetrical. Pendulum arm is designed of cantilever beam support, with simple structure and high machined precision.
5.3 Apply high precision bearing with small friction. Absorbing energy without loading is less than 0.3%.
5.4 Double reduction gear system replaces old style drive system with high efficiency and avoiding transmission failure.
5.5 High rigid pendulum arm prevents axial and transverse vibrations.
5.6 Exchangeable pendulum is simple to change to satisfy impact energy of 150J, 300J, 450J, 600J, 750J.
5.7 Electromagnetic release of pendulum hammer and electromagnetic clutch for locking the pendulum and raising it to its initial position. A damper is equipped to prevent strong bump when clutching.
5.8 Full-closed enclosure with high safety to prevent broken sample from splitting. Protective screening has interlock door. When the door opens, most operations can’t work to avoid any wrong operation.
5.9 Apply SIEMENS industrial PLC to control pendulum, The whole system is stable, reliable and accurate.
5.10 Big touch screen monitor may real-time displays striker angle, impact energy, toughness,and other parameters. User can input specimen data and other information such as company information into this monitor. When connected to a printer, user input information and test results will be printed(optional)
5.11 Optional cooling system is available to satisfy cold specimen test down to -180℃(optional)
