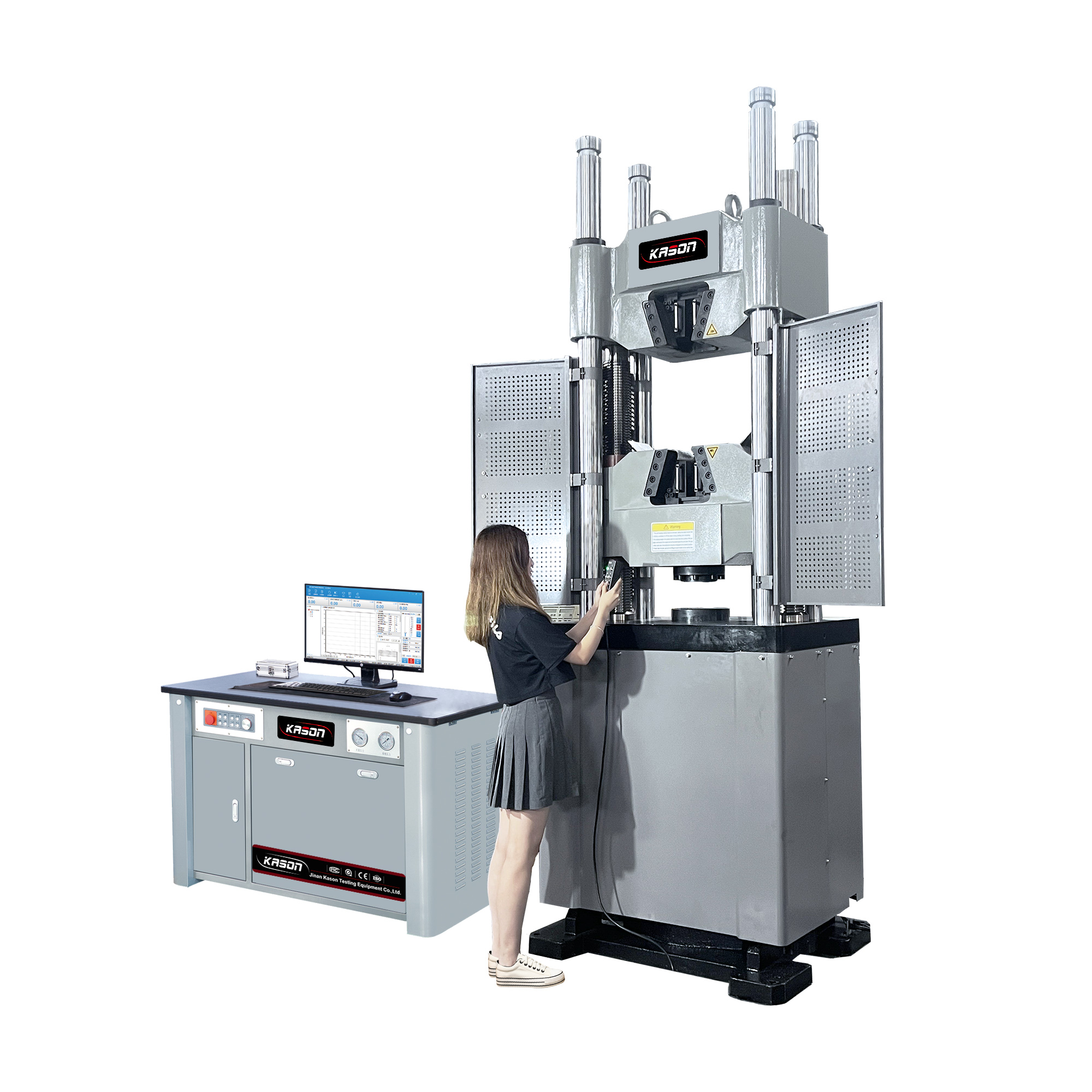

waw-2000 utm computer automatic control steel bar hydraulic universal testing machine from jinan equipment
1.Application:
The machine adopts hydraulic loading, Computer Display, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials. Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber, and so on.It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.2.Standards:
ISO6892, BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.
3.Specifications:
|
MODEL |
WAW-2000D |
|
Max. Load(kN) |
2000 |
|
Load accuracy |
Class 0.5 |
|
Measuring range |
2％～100％ |
|
Displacement Resolution |
0.01mm |
|
Load resolution |
Capacity/500,000 |
|
Tensile space(mm) |
850 |
|
Compression space(mm) |
850 |
|
Distance berween two columns |
800 |
|
Piston stroke(mm) |
250 |
|
Clamping Method |
Hydraulic Automatic Clamp |
|
Power Supply |
3-phase, AC380V, 50Hz (Can Be Customized) |
