Standard:
Main Technical Parameters:

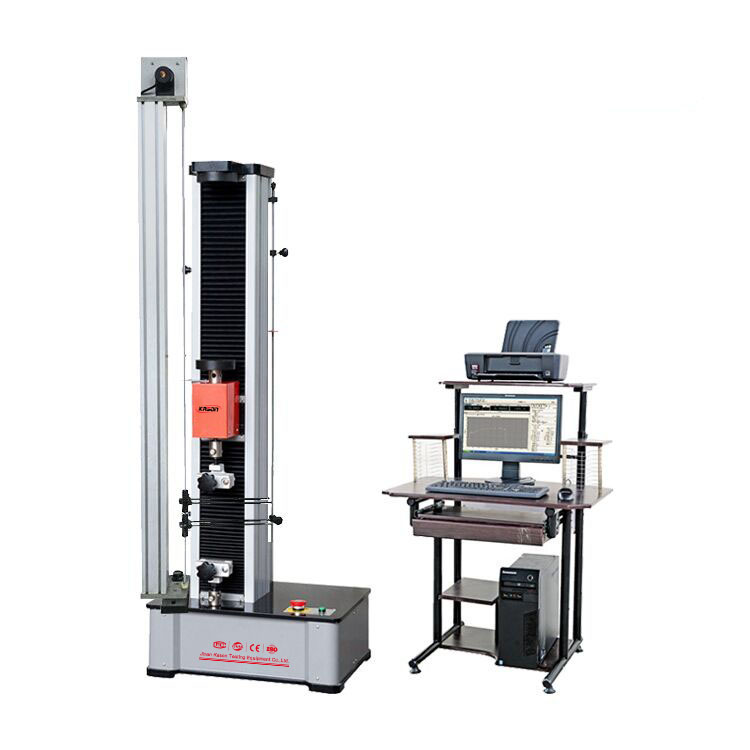

Model | WDW-1E/WDW-2E/WDW-3E/WDW-5E |
Structure | Single column double spaces |
Max. Load(kN) | 1 /2 /3 /5 |
Material | All aluminum alloy surface spray painting shell |
Load accuracy | ISO 7500 Class0.5 |
Load range | 0.2%~100%F·S |
Load resolution | 1/ 300000 |
Resolution of displacement | 0.01mm |
Test speed(mm/min) | 0.05-500 stepless arbitrary setting |
Speed accuracy | within ±1% set speed |
E-Tensile space(mm) | 600 (can be customized) |
E-Compression space(mm) | 600 (can be customized) |
D-Test width(mm) | 100 |
F-Beam travel distance(mm) | 772 |
H-Workbench thickness(mm) | 26 |
G-Base height(mm) | 158 |
Power supply | AC220V±10%,50Hz/60Hz(can be customized) |
