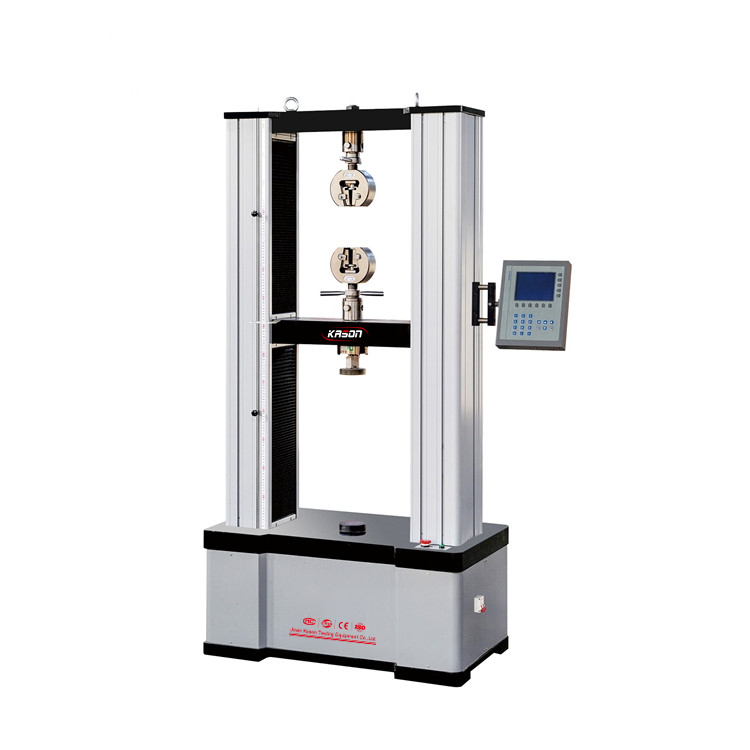

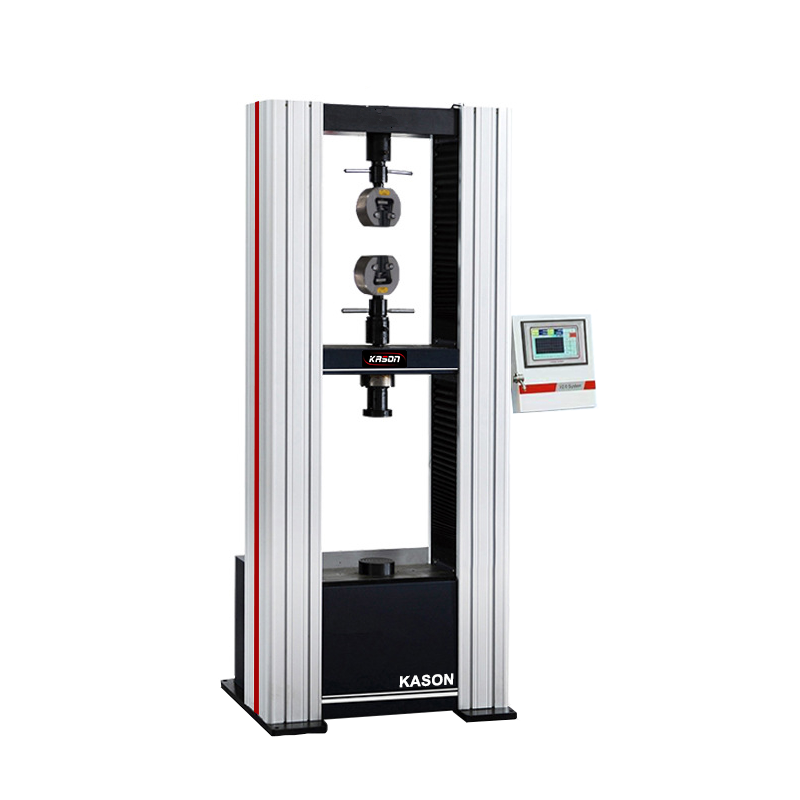

WDS-200/300 Digital Display Electronic Universal Testing Machine
Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Standards:ASTM, ISO, DIN, GB and other international standards.
Specifications:| Model | WDS-200 | WDS-300 |
| Max. Load(kN) | 200 | 300 |
| Structure |
Four-column floor or desk model, (upper is compression and lower is tensile) |
|
| Cover |
All aluminum alloy |
|
| Control method |
Single chip control |
|
| Load accuracy |
ISO 7500,Class1 |
|
| Load range |
2%～100%F·S |
|
| Displacement resolution |
0.04um |
|
| Test speed(mm/min) |
0.05-500 |
|
| Tensile space(mm) |
700（can be customized） |
|
| Compression space(mm) |
700（can be customized） |
|
| Test width(mm) |
550（can be customized） |
|
| Workbench thickness(mm) |
68 |
|
| Base height(mm) |
460 |
|
| Power supply |
AC220V±10%，50Hz(can be customized) |
|
| Grips |
Wedge type, plate type and other grips as consumer’s demand |
|
| Dimension(mm) | 1000*550*2076 | |
