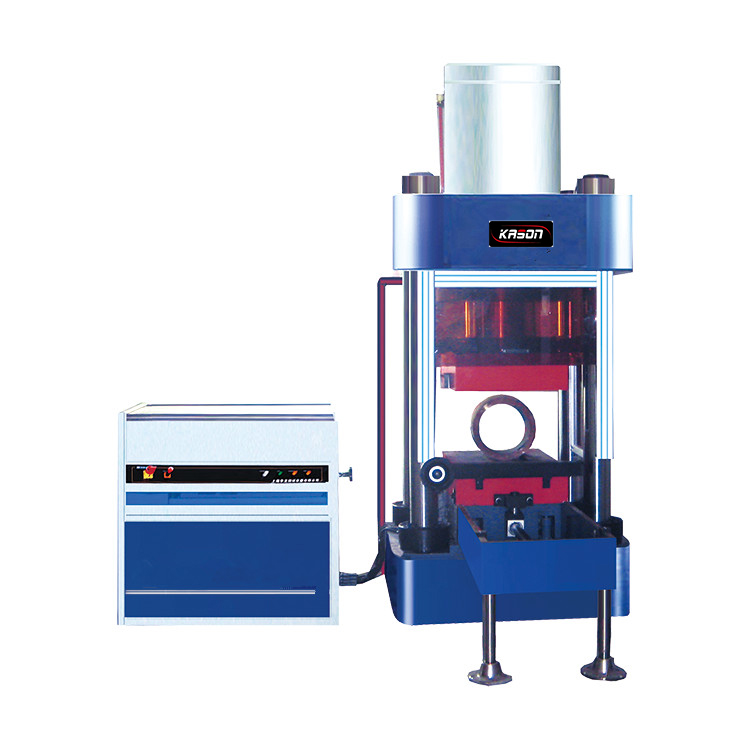

3000KN Digital Rubbers Composites Tube Ring Pressure Compressive Strength Testing Machine Price
Application:
It is ideal for high-capacity compression, bend/flex and crush testing of building materials, rubbers and some other composites which are used in special applications.
It is widely used in civil engineers, quality control department, universities and institutes as well as other engineering areas and works.
Technical Specifications
|
Model |
KS-2000 |
KS-3000 |
|
Load capacity (kN) |
2000 |
3000 |
|
Accuracy class |
Class 0.5 (ISO7500-1) |
|
|
Support columns |
4 Pre-stressed |
|
|
Clearance between platens (mm) |
340 |
|
|
Ram stroke (mm) |
60 |
|
|
Clearance between columns (mm) |
350 x 220 |
350 x 270 |
|
Platen dimensions (mm) |
Φ290x 50 Optional 450x300x50 |
Φ320x 70 Optional 450x300x70 |
|
Load frame (mm) |
550 X 550 X 1,400 |
590 X 590 X 1,425 |
|
Gross Weight |
1,100kg |
1500kg |
|
Power |
220VAC 50/60 Hz |
|
