1. Application

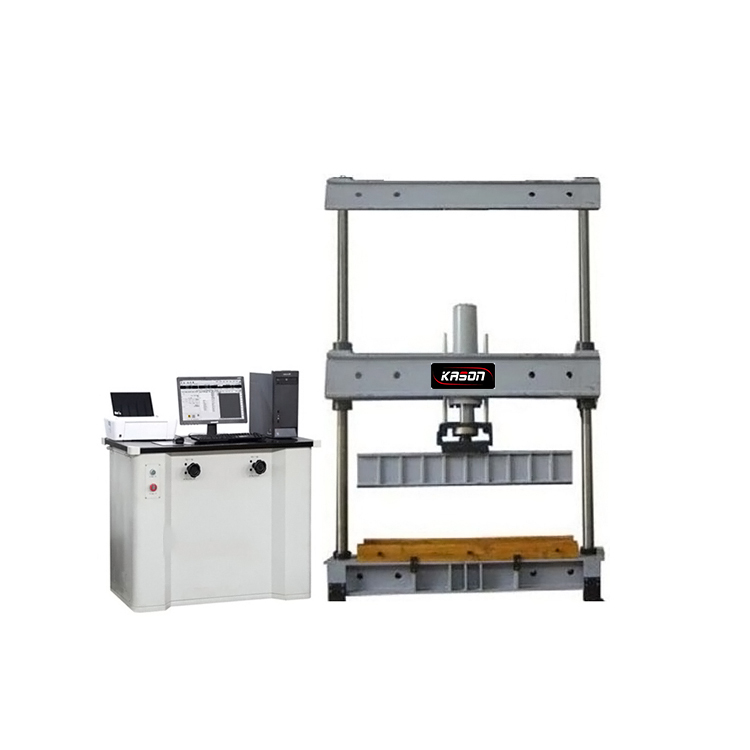

CDY-1000W Compression testing machine used for concrete and cement pipe compression strength testing, with different compression fixture can test cement, plastic sand, and red brick building materials. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities,R&D institution lines. The test operation and data processing meets standard requirements.
2. Standard
Model | CDW-1000W |
Max test force | 1000kN |
Structure | Two ball screws, oil cylinder above structure |
Test machine class | 1 class |
Test force range | 2%-100% FS |
Test force indicate relative error | Better than ±1% |
Displacement resolution | 0.01 mm |
Displacement indicate relative error | Better than ±1% |
Displacement deformation measurement range |
0~250 mm |
Piston max moving speed | 0.5~50mm/min stepless speed regulating |
Oil cylinder stroke | 250 mm |
Compression space adjust mode | Electric ball screw adjust |
Distance between upper and lower compression plate |
0-3200 mm (Arbitrary adjustable) |
Distance between two columns | 3200 mm |
Upper compression plate size/material | Length 2200 mm, width 120 mm steel, with rubber |
Lower compression plate size/material |
Length 2200 mm, width 50-300 mm(adjustable) hard wood |
Power supply | 220V/60Hz/2.2KW/3 phase |
