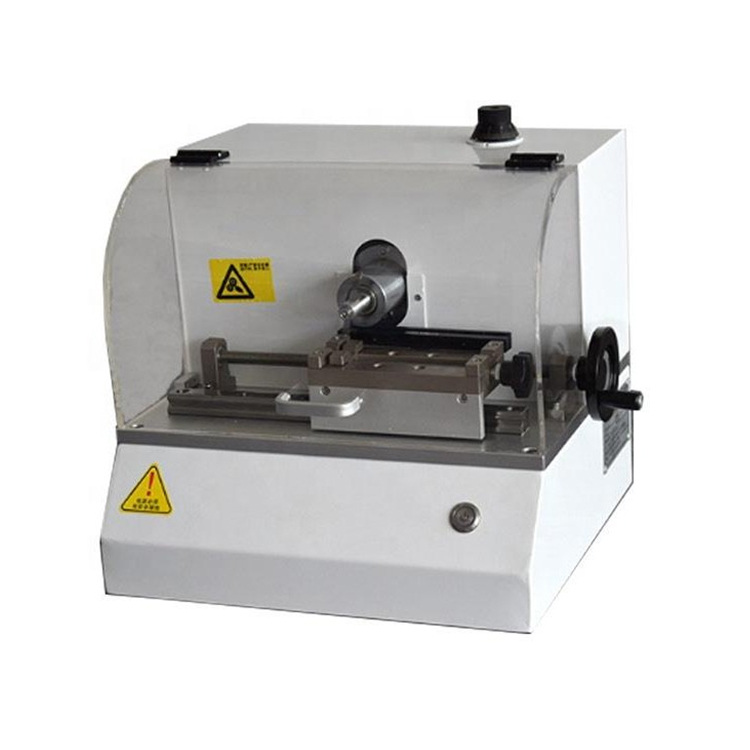

KS-5040 Electric Izod Impact Specimen Notch Sample-making Test Machine
Application:
Electric Izod Impact Specimen Notch Sample-making Machine is the sampling machine producing notch sample used by charpy and izod impact tester to do the test of impact toughness of non- metallic materials. It can clamp 20 samples per time; make more than 60 notches per 10 minutes.The size of Electric Izod Impact Specimen Notch Sample-making Machine is accurate, and has much effective, greatly reduced the difficulties of operation.
Standard:
ISO180 "Plastics - Determination of Izod Impact Strength of Rigid Materials"ASTM D256 "Test method for determining the impact strength of plastic IZOD pendulum" ISO179 "Plastics - Determination of Charpy Impact Strength of Rigid Materials"
Specification:
Electric Izod Impact Specimen Notch Sample-making Machine is the sampling machine producing notch sample used by charpy and izod impact tester to do the test of impact toughness of non- metallic materials. It can clamp 20 samples per time; make more than 60 notches per 10 minutes.The size of Electric Izod Impact Specimen Notch Sample-making Machine is accurate, and has much effective, greatly reduced the difficulties of operation.
Standard:
ISO180 "Plastics - Determination of Izod Impact Strength of Rigid Materials"ASTM D256 "Test method for determining the impact strength of plastic IZOD pendulum" ISO179 "Plastics - Determination of Charpy Impact Strength of Rigid Materials"
Specification:
|
MODEL |
KS-5040 |
|
Table stroke |
>160mm |
|
Blade feeding speed |
1-30mm/min Adjustible |
|
Sample type |
Type 1, Type 2, Type 3 |
|
Notch type |
Type A, B (optional), C (optional) |
|
External dimension |
600mm×270mm×300mm |
|
Supply voltage |
220V, single-phase three wire system |
