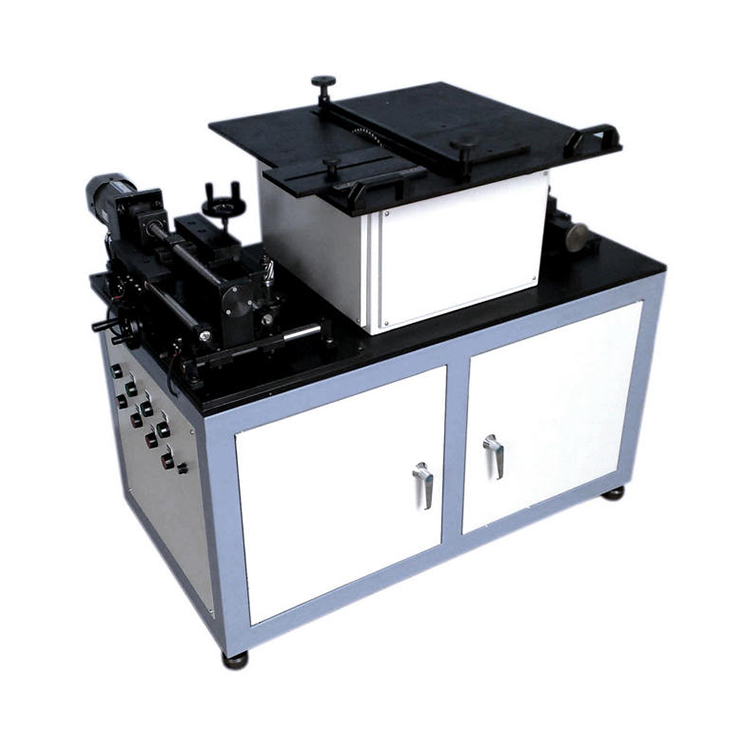

KS-UZY Universal Tensile Sample Impact Sample Making Machine
Applications:
Universal Tensile Sample Impact Sample Making Machine mainly used inthe processing the standard specimen of the plastic, the organic glass etc. non-metal materials, these standard specimen use for impact, tensile,compression, thermal performance test and soon. It can be cut, milling notch, milling curvilinear type, dumbbell type and plane processing.The milling notch specimen use to impact test, the dumbbell type specimen use to tensile test.
Specification:
Universal Tensile Sample Impact Sample Making Machine mainly used inthe processing the standard specimen of the plastic, the organic glass etc. non-metal materials, these standard specimen use for impact, tensile,compression, thermal performance test and soon. It can be cut, milling notch, milling curvilinear type, dumbbell type and plane processing.The milling notch specimen use to impact test, the dumbbell type specimen use to tensile test.
Specification:
|
Model |
KS-UZY |
|
Max. Cutting Width |
260 mm |
|
Max. Cutting Thickness |
35 mm |
|
Max. Milling Surface Length |
200 mm |
|
Saw Blade For Cutting |
250*32*2 mm |
|
Rotating speed(r/min) |
2800 |
|
Length Of Knife Used To Mill Notch |
50 mm |
|
Knife Specification Of Processing Dumbbell Type And Plane |
27*12*35 mm |
