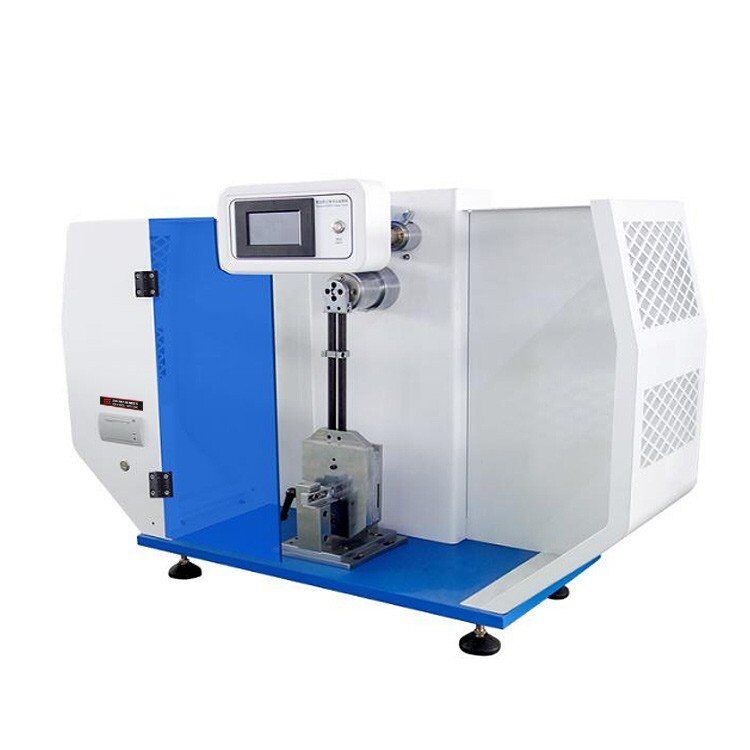

XJXD-50T Nylon Glass Fiber Plastic IZOD Impact Test Equipment Charpy Pendulum Impact Tester
Application:
This Impact Tester is is used to determine the impact toughness of non-metallic material such as rigid plastics, fibre reinforced composite material, nylon, glass, ceramics, cast stone, asbestos board, electrical
insulating material, etc. It is suitable for notched and unnotched specimen.
Standard:
ISO179,ISO180, ASTM D256 and the equivalent.
Specifications：
|
MODEL |
XJXD-5.5T |
XJXD-50T |
|
Impact energy |
For Izod: 5.5J,2.75J For Charpy: 1J,2J,4J,5J |
For Izod: 5.5J,11J,22J For Charpy: 7.5J,15J,25J,50J |
|
Elevation in advance |
150°(accuracy 0.01°) |
150°(accuracy 0.01°) |
|
impact speed |
3.5m/s,2.9m/s |
3.5m/s,3.8m/s |
|
Measurement resolution |
0.01J |
|
|
Pendulum center distance |
Izod: 335mm; Charpy:230mm |
|
|
Pendulum angle |
150° |
|
|
Measurement accuracy |
±0.1% |
|
|
Resolution |
0.03% |
|
|
Impact blade to the surface distance of the tongs |
22mm±0.05mm |
|
|
Corner radius of striking |
Izod : R=0.8mm; Charpy:R=2mm±0.5mm |
|
|
Output mode |
Printout |
|
|
Power |
AC220V±10% 50HZ |
|
