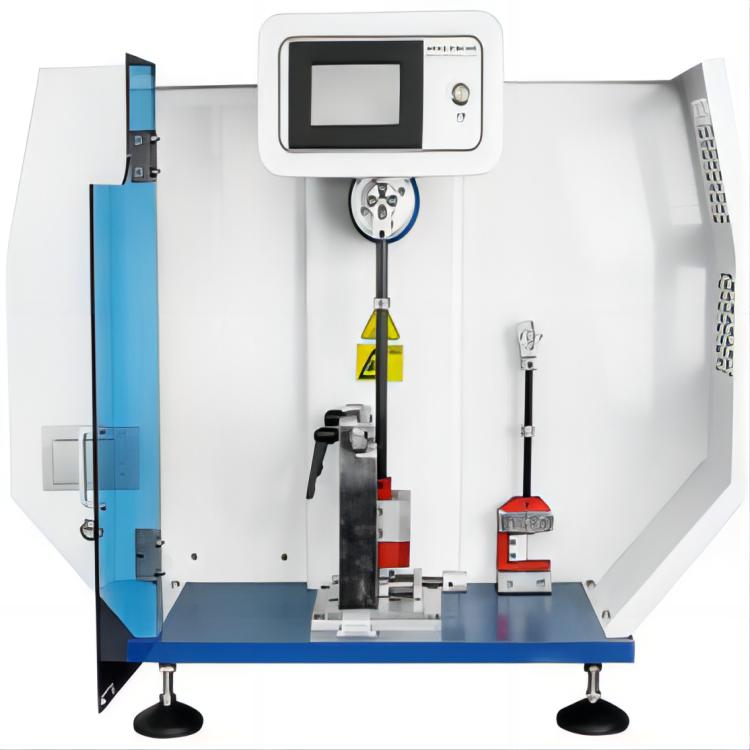

XJUD-5.5T Digital Display Izod Pendulum Impact Tester Machine
Application:
This Impact Test is mainly used to measure the impact toughness of rigid plastic, reinforced nylon, fiberglass, ceramics, cast stone, insulation materials and other non-metallic materials. It is the ideal testing equipment in the chemical industry, scientific research institutes, universities and quality testing departments.
Standard:
ISO180, ASTM D256 and the equivalent.
Specification:
|
Model |
KSXJUD-5.5T |
KSXJUD-22T |
|
Standard |
ISO180,ASTM D256 |
|
|
Display |
Touch screen |
|
|
Impact velocity |
3.5m/s |
|
|
Impact energy |
2.75J, 5.5J |
11J, 22J |
|
Precision |
Angle (0.01 °) Energy (0.01J) |
|
|
Impact center distance |
335mm |
|
|
Pendulum angle |
150° |
|
|
Distance between striking |
22.0mm±0.2mm |
|
|
Corner radius of striking |
R=0.8mm±0.2mm |
|
|
Print out |
Capacity. Angle, energy, etc. |
|
|
Power supply |
AC220V, 50Hz |
|
