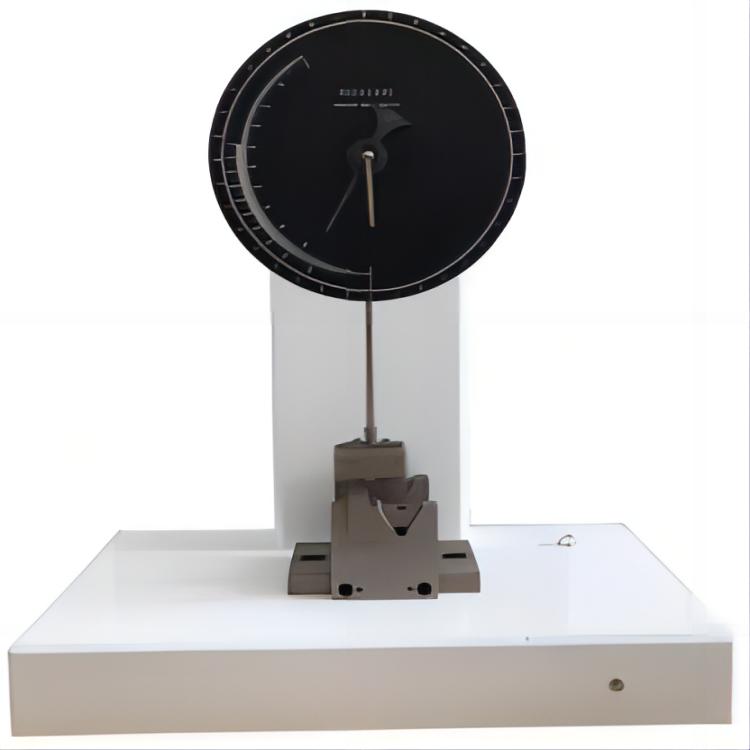

KSXJJ-5 Non Metal Plastic Charpy Impact Tester
Application:
This instrument is mainly used for the determination of the impact toughness of non-metallic materials such as rigid thermoplastic molding and extrusion materials, rigid thermosetting molding materials, and fiber-reinforced thermosetting and thermoplastic composite materials.
Standard:
ISO179,ISO180 and the equivalent.
Specification:
|
Model |
KSXJJ-5 |
KSXJJ-50 |
|
Standard |
ISO179 |
|
|
Display |
Dial |
|
|
Impact velocity |
2.9m/s |
3.8m/s |
|
Impact energy |
(0.5J), 1J, 2J, 4J, 5J |
7.5J, 15J, 25J, 50J |
|
Impact center distance |
230mm |
380mm |
|
Pendulum angle |
150° |
150° |
|
Radius of striking edge |
R=2±0.5mm |
R=2±0.5mm |
|
Radius of jaw |
R=1±0.1mm |
R=1±0.1mm |
|
Inclined angle of striking edge |
30±l° |
30±l° |
|
Energy display resolution |
0.01J |
0.01J |
|
Jaw support spacing |
40, 60, 62, 70mm |
40, 60, 70, 95mm |
|
Dimensions |
420×260×630mm |
460×330×745mm |
|
Weight |
60kg |
70kg |
