Application:

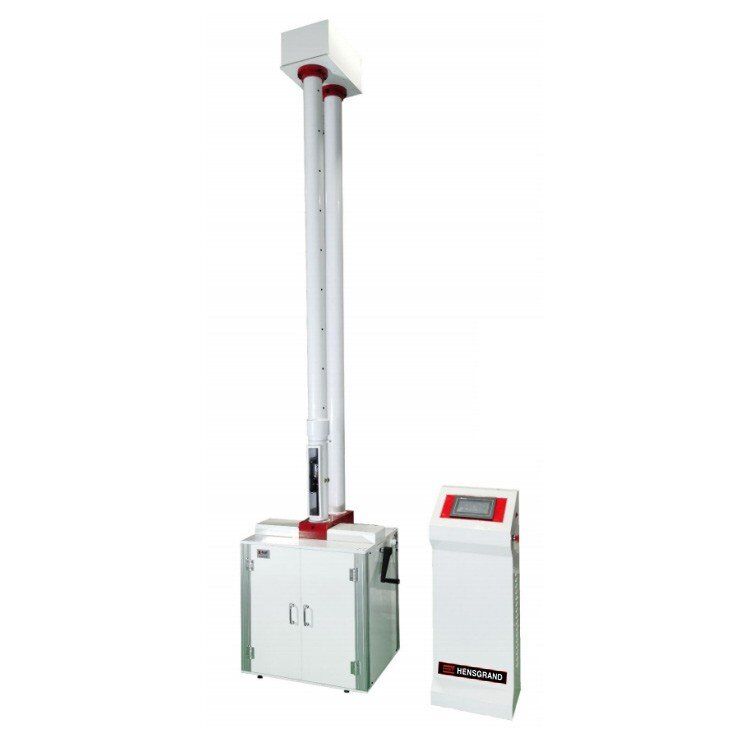

This Falling Weight Impact Tester widely used to measure the impact resistance supply and drainage pipes, sewage pipes, gas pipes, communication pipes, such instrument for testing institutions, production units, building materials industry, an This product has passed the EU CE certification.
Standard:
ISO 4422, ISO3127, BS EN, BS EN1411, 744, ASTM D2444
Model |
KS6300A |
KS6300B |
Striker mass |
0.250~15.000kg, increment: 0.125kg |
|
Dimensions for the nose of the striker(mm) |
d25, d90 or customize |
R5, 6.3, 10, 12.7, 30, 51 |
Impact height(mm) |
50-2000 |
610-3000 |
Height error(mm) |
±2 |
|
Lifting speed(m/min) |
10 |
|
Specimen specification |
Φ10mm~Φ630mm, can be customized |
|
Hammer lifting method |
pneumatic |
|
Power supply |
AC220V, 50Hz |
|
Dimensions |
800×800×3370mm |
800×800×4380mm |
Weight |
300Kg |
350Kg |
Main Features:
1.Touch Screen Digital display impact height
2.Lifting structure drives by induction brake motor
3.Adopt electromagnet to prevent the second impact
4.Seamless steel pipe structure, not easy to deformation and the resistance during the striker falling down will be smaller
5.The assemble combined V-shaped shim design makes it suitable for pipes of different pipe diameters and plate samples of different thicknesses. After the special accessories for the helmet are selected, the impact test of the helmet can be carried out;
6.Different strikers can be selected.
