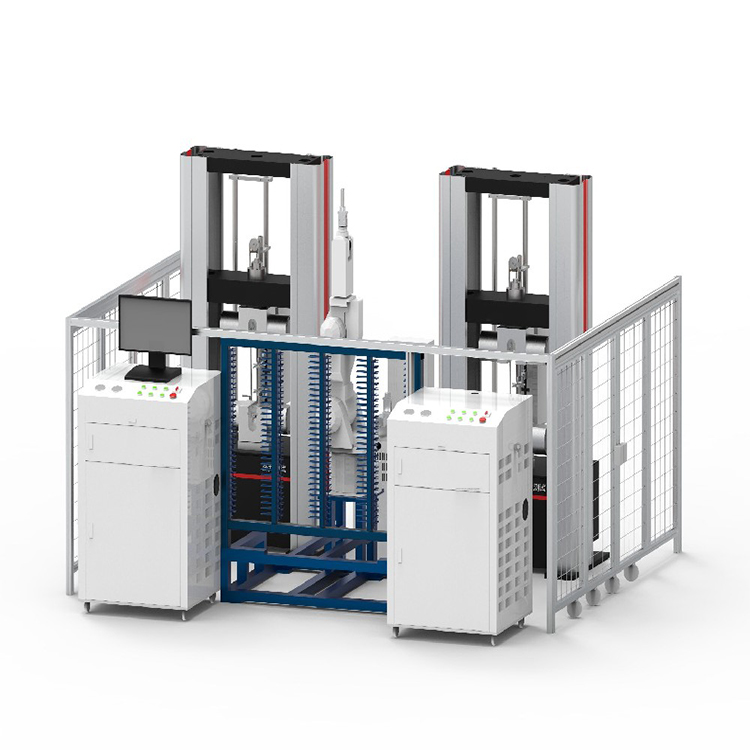

200KN Computer Control Full Auto Electronic Tensile Testing Machine
Application:
WDW-200G The computer-controlled fully automatic tensile testing machine consists of an electronic universal testing machine, a double-sided horizontal push hydraulic automatic stretching clamp, a horizontal push clamp servo intelligent hydraulic source, a digital vertical and horizontal automatic extensometer, and an extensometer program-controlled automatic advance and retreat device.
Standards:GB/T 228, JIS Z 2241, ISO 6892, ASTM E8, DIN, BS, EN, ect.
Specifications:
| Max. load | 200KN |
| Testing level | 0.5 Class |
| Driving way | Servo control, electric servo, medium control gas island |
| Operation type | Automatic / manual stretching at room temperature |
| Effective test width | 550mm |
| Test speed | 0.001-500mm/min stepless setting |
| Speed accuracy | ±0.5% |
| Sampling frequency | 20-1000Hz, can be adjusted freely |
| Bandwidth | 1kHz |
| Control response frequency | 200Hz |
| Speed control mode | displacement, load, stress, strain can be arbitrarily selected and switched within the stretching phase. |
| Full load speed and speed accuracy | 500mm/min, ±0.5% |
| Power supply | Three-phase 3.5kW |
| Host size | 1100* 600* 2470mm (width includes PLC manual box) |
| Oil source size | 900 * 550 * 760 mm |
