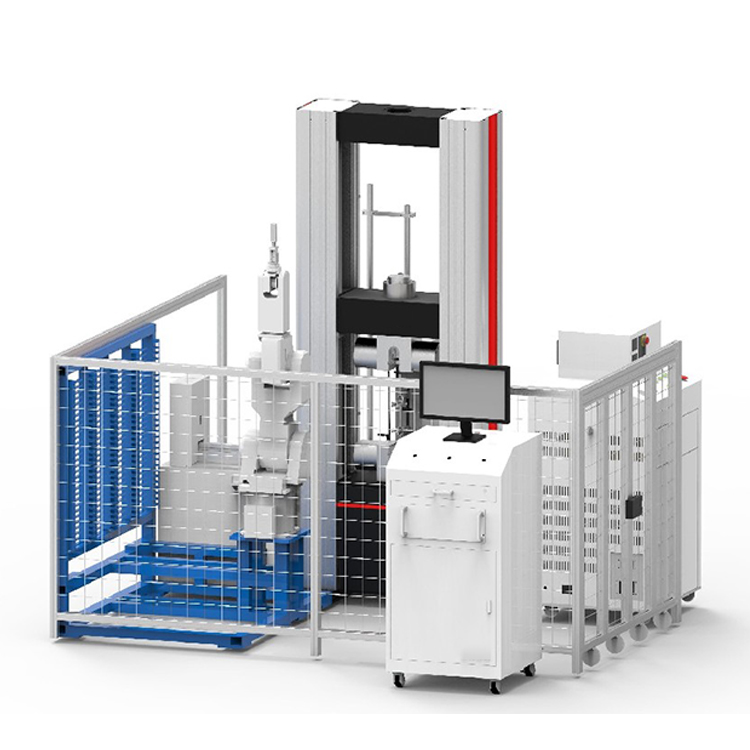

600KN Computer Control Full Auto Electronic Tensile Testing Machine
Application:
WDW-600G The computer-controlled fully automatic tensile testing machine consists of an electronic universal testing machine, a double-sided horizontal push hydraulic automatic stretching clamp, a horizontal push clamp servo intelligent hydraulic source, a digital vertical and horizontal automatic extensometer, and an extensometer program-controlled automatic advance and retreat device.
Standards:
GB/T 228, JIS Z 2241, ISO 6892, ASTM E8, DIN, BS, EN, ect.
Specifications:
| Max. load | 600KN |
| Testing level | 0.5 Class |
| Driving way | Servo control, electric servo, medium control gas island |
| Operation type | Automatic / manual stretching at room temperature |
| Max. distance between tensile clamp | ≥550 mm |
| Effective test width | ≥620mm |
| Test speed | 0.001-200mm/min stepless setting |
| Speed accuracy | ±0.5% |
| Sampling frequency | 1000Hz, can be adjusted freely |
| Bandwidth | 100kHz |
| Control response frequency | 200Hz |
| Speed control mode | displacement, load, stress, strain can be arbitrarily selected and switched within the stretching phase. |
| Full load speed and speed accuracy | 200mm/min, ±0.5% |
| Power supply | Three-phase 10kW |
| Host size | 1500* 900* 2780mm (width includes PLC manual box) |
| Oil source size | 380 * 550 * 600 mm |
| Complete equipment size | 4460* 2540* 2780 mm |
| Total weight | 9600kg |
