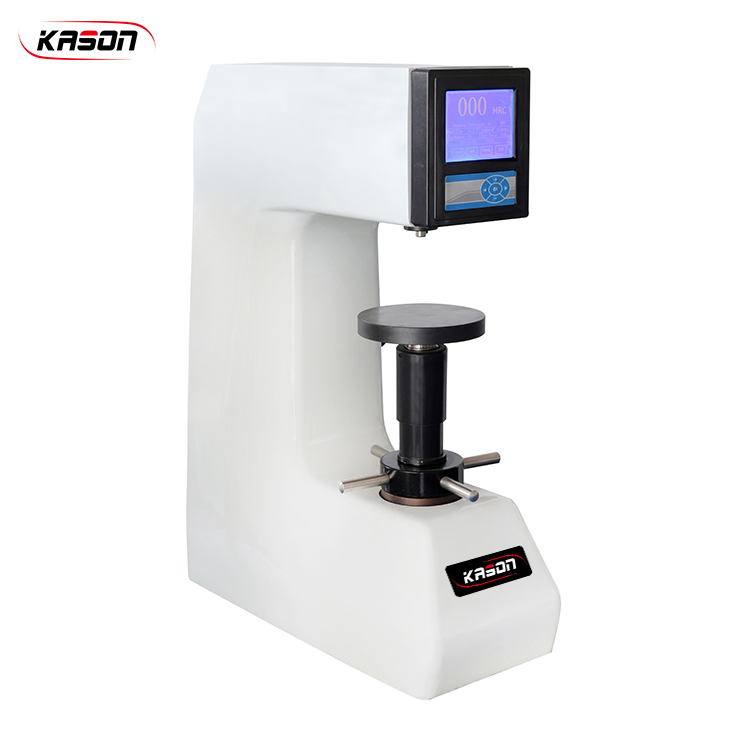

HSTR-45S Digital Display Superficial Rockwell Hardness Tester
Application:
Superficial Rockwell Hardness Tester suitable for measuring superficial rockwell hardness of Ferrous Metals, Alloy Steel, Carbide and Metal after treated surface (carburizing, nitriding, plating layer). Especially suitable for precision measurement of Parallel Planes.
Specifications:
| Model | HSTR-45S |
| Function | Electric |
| Indication of hardness value | Digital display |
| Data output |
Built-in printer, RS232
|
| Total test force |
15Kgf(147.10N), 30Kgf(294.20N), 45Kgf(441.30N)
|
| Measuring range |
70-94HR15N, 67-93HR15T, 42-86HR30N,
29-82HR30T, 20-77HR45N, 10-72HR45T
|
| Max. test height |
210mm
|
| The distance between pressure head center and the wall |
135mm
|
| Hardness resolution |
0.1HR
|
| Dimensions |
510*290*730
|
| Weight |
80kg
|
| Power supply |
AC 220V, 50Hz
|
