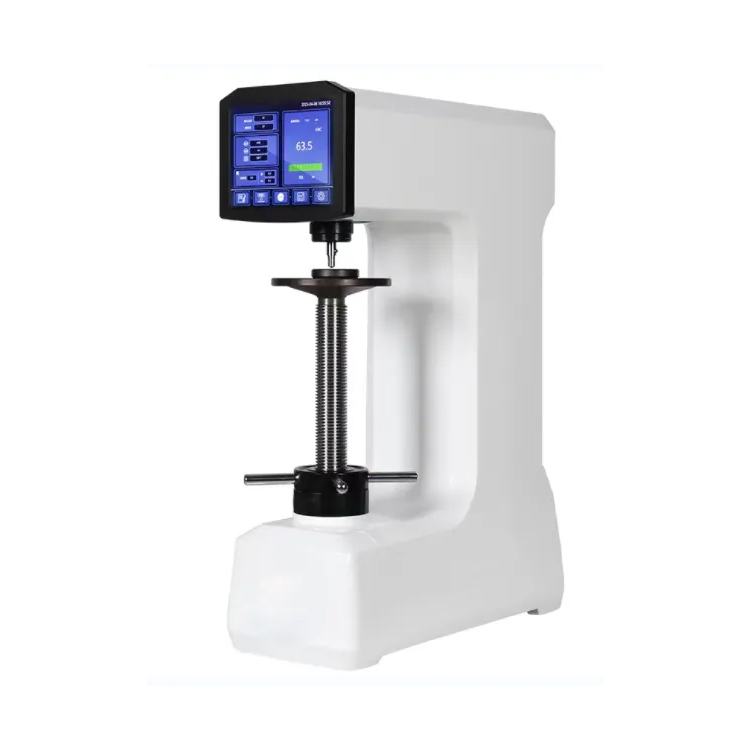

Touch Screen Rockwell Hardness Tester HTR-150T

I.Applications:

Suitable for quenching, quenching and tempering, annealing, chilled castings, malleable castings, hardness determination of hard alloy steel, aluminum alloy, copper alloy, bearing steel, etc. It is also suitable for surface hardened steel, material surface heat treatment and chemical treatment layer, copper, aluminum alloy, thin plate, galvanized, chrome plated, tin plated material, bearing steel, chilled castings, etc.

II.Features:

1.Electronic-driven instead of weight -driven, it can test the Rockwell and the Superficial Rockwell full scale;

2.Touch screen simple interface, humanized operation interface;

3.Machine main body overall pouring, deformation of the frame is small, measuring value is stable and reliable;

4.Powerful data processing function, can test 15 kinds of Rockwell hardness scales, and can convert HR, HB, HV and other hardness standards;

5. Independently stores 500 sets data, and data will be saved when power is turned off;

6.Initial load holding time and loading time can be set freely ;

7.The upper and lower limits of hardness can be set to directly, display qualified or not;

8.With hardness value correction function, each scale can be corrected;

9. The hardness value can be corrected according to the size of the cylinder;

10. Comply with the latest ISO, ASTM, GB and other standards;

11. Good reliability, excellent operation and easy watching.

III, Main technical specifications:
