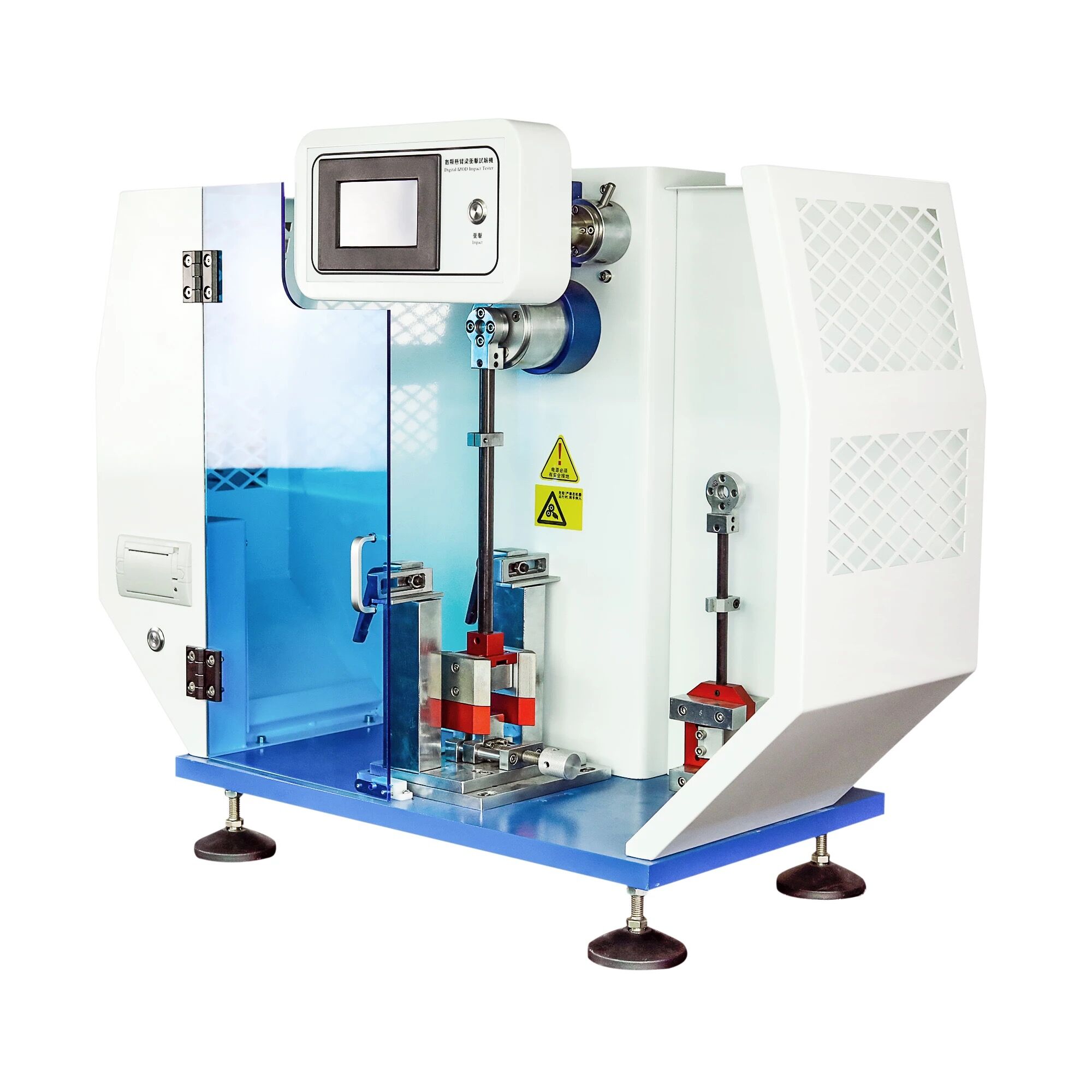

XJUD-T Touch screen izod impact testing machine
Instrument overview
It is mainly used to measure the impact toughness of non-metallic materials such as hard plastics, reinforced nylon, glass fiber reinforced plastics, ceramics, cast stone, and electrical insulating materials. Ideal testing equipment for chemical industry, scientific research units, colleges and universities, quality inspection departments, professional manufacturer laboratories and other units.
Specifications:
|
Model |
XJUD-22T |
XJUD-5.5T |
|
Impact energy |
11J、22J |
2.75J、5.5J |
|
Impact velocity |
3.5m/s |
|
|
Pendulum advance angle |
1500 |
|
|
Distance from impact blade to above jaw |
22mm±0.2mm |
|
|
Strike center distance |
335mm |
|
|
Blade radius |
R=0.8mm±0.2mm |
|
|
Energy loss |
11J <0.05J；22J <0.10J； |
1.0J <0.02J；2.75J <0.03J；5.5J <0.03J |
|
Minimum resolution |
0.001J |
|
|
Instrument size |
L*W*H: 700mm×350mm×850mm |
|
|
Required space |
Fore and aft distance：0.4m, Left and right distance：1.5m,Upper distance：1.5m |
|
|
power supply |
100VA 220VAC 50HZ |
|
