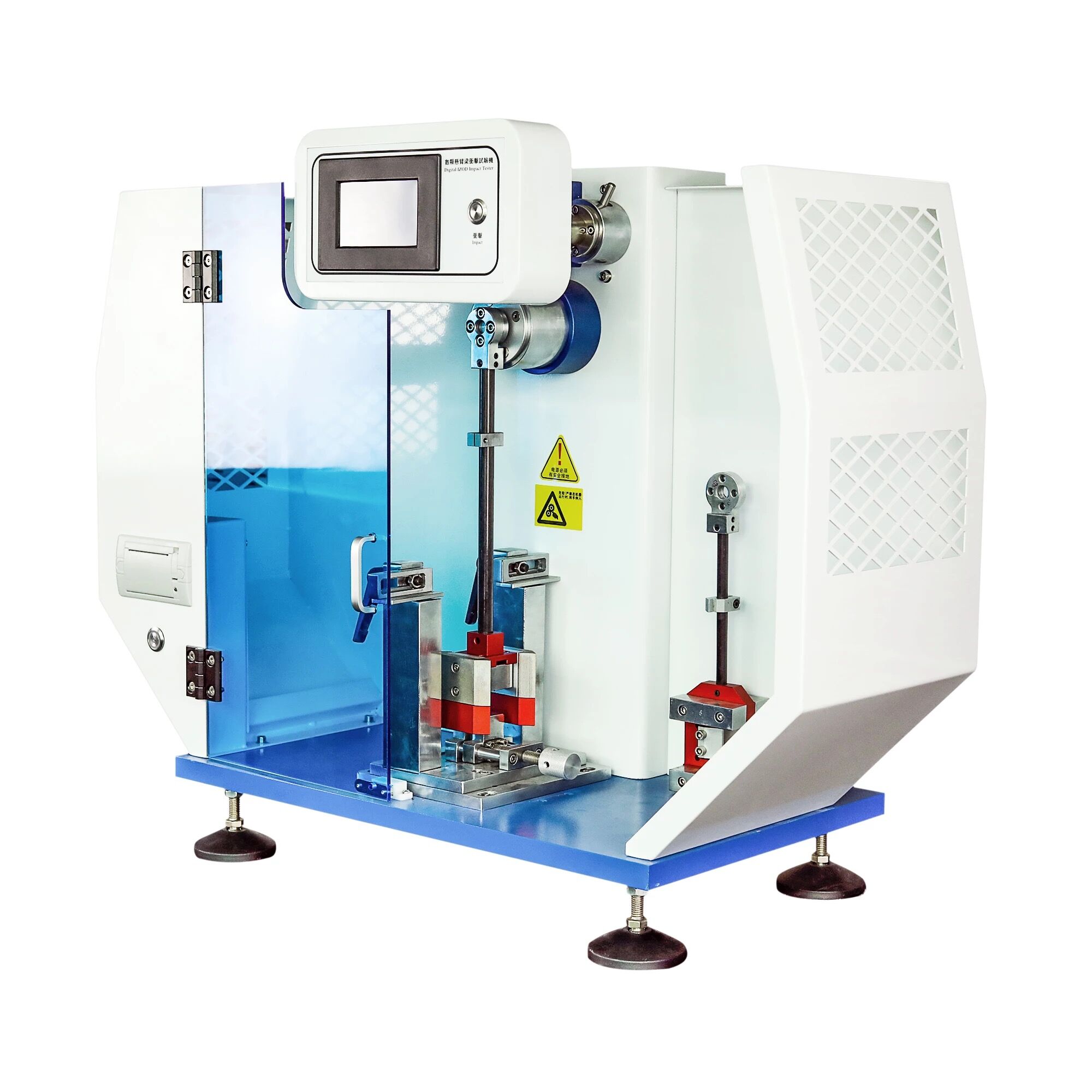

XJJD-5/50T Charpy Impact Testing Machine
1. Applications:
XJJD-T series impact testing machine is mainly used for the determination of the impact toughness of non-metallic materials such as hard plastics (including plates, pipes, and plastic profiles), reinforced nylon, glass fiber reinforced plastic, ceramics, cast stone, and electrical insulating materials. This testing machine is an ideal testing equipment for the chemical industry, scientific research institutions, quality inspection departments of colleges and universities, etc.2.Standard:
The main technical parameters of this series of impact testing machines fully meet the requirements of IS0179, GB/T1043, GB/T2611, and GB/21189 standards.
3. Technical Parameter:
|
Model: |
XJJD—5T |
XJJD-50T |
|
Impact speed |
2.9m/s |
3.8m/s |
|
Impact energy |
2.0,4.0,5.0J |
7.5,15.0,25.0,50.0J |
|
Impact pendulum moment |
Pd0.5=0.26795Nm Pd1=0.53590Nm Pd2=1.07180Nm Pd4=2.14359Nm Pd5=2.67949Nm |
Pd7.5=4.01924Nm Pd15=8.03848Nm Pd25=13.39746Nm Pd50=26.79492Nm
|
|
Rising Angle Of Pendulum |
1500 |
|
|
Pendulum Impact Center To Impact Blade Distance: 230mm |
||
|
Blade Corner Radius |
(2±0.5)mm |
|
|
Impact angle of blade |
(30±1)0 |
|
|
Supporting Blade Corner Radius |
(1.0±0.1)mm |
|
|
Distance between jaw support lines |
62 |
62 |
|
Power |
220VAC+10%，50Hz |
|
