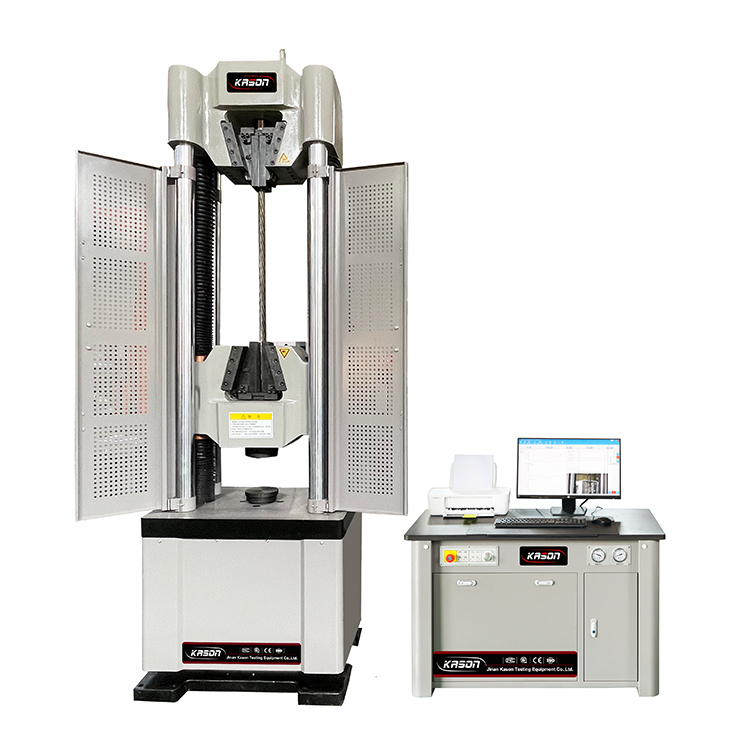

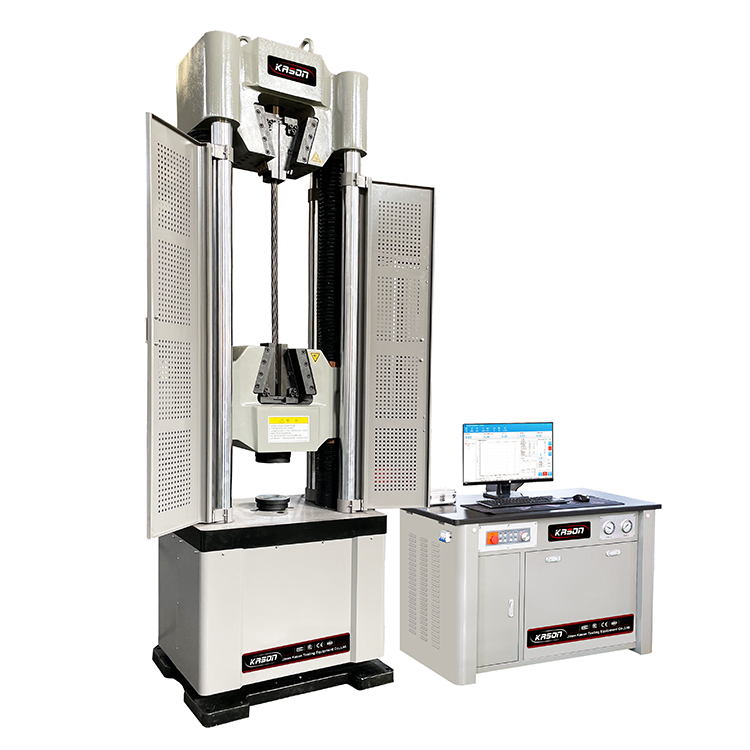

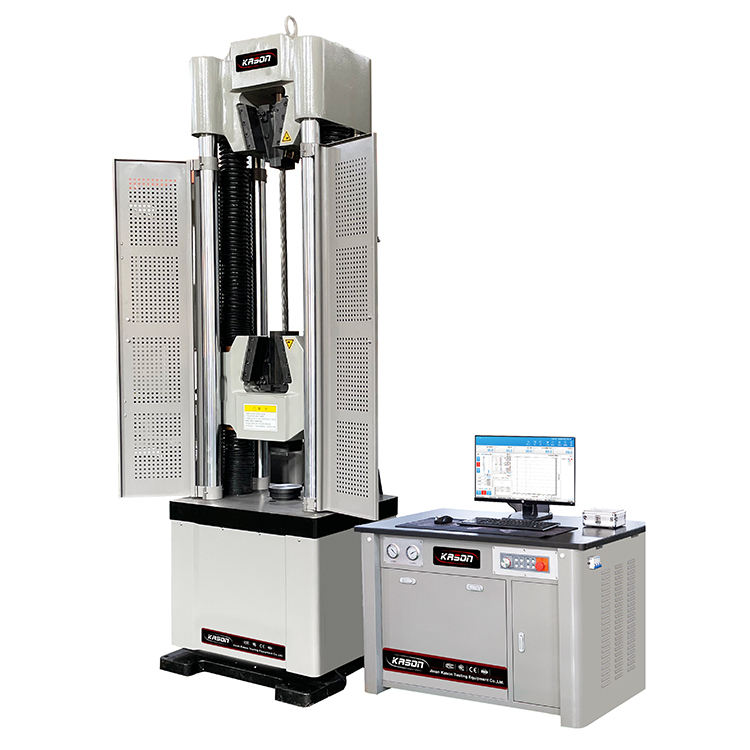

600~1000kn computer control electrohydraulic servo steel strand universal testing machine
Application:
Fastener, rebar, chain, welds, castings, stranded steel wireStandards:
ASTM A370, ASTM A416, ISO6934.4
Technical Parameters:
| Model | HUT605E | HUT605W | HUT105E | HUT105W |
| Max. Load(kN) | 600 | 600 | 1000 | 1000 |
| Load Accuracy | Class 1/ Class 0.5 | |||
| Load Range | 2%~100%FS | |||
| Load Resolution | 1/350000 | 1/350000 | 1/350000 | 1/350000 |
| Deformation Measurement Range | 2%~100%FS | 2%~100%FS | 2%~100%FS | 2%~100%FS |
| Deformation Accuracy | ≤± 1% | ≤± 1% | ≤± 1% | ≤± 1% |
| Displacement Resolution | 0.01mm | 0.01mm | 0.01mm | 0.01mm |
| Displacement Error | ≤±0.5% | ≤±0.5% | ≤±0.5% | ≤±0.5% |
| Max. Piston Stroke(mm) | 200 | 200 | 250 | 250 |
| Max. Tension Test Space(mm) | 1350 | 1350 | 1350 | 1350 |
| Max. Compression Test Space(mm) | 1000 | 1000 | 1000 | 1000 |
| Column Effective Spacing(mm) | 580 | 580 | 580 | 580 |
| Clamping Method | Hydraulic Automatic Clamp | |||
| Flat Specimen Clamping Width(mm) | 150*100 | 150*100 | 150*100 | 150*100 |
| Compression Plate Size | Φ 160mm | |||
| Power Supply | 3-phase, AC380V, 50Hz (Can Be Customized) | |||
