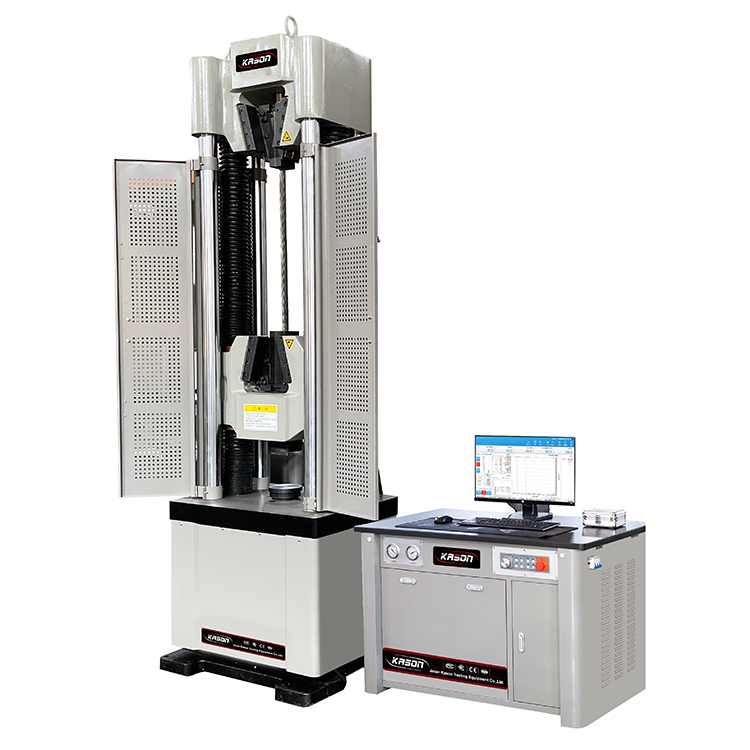

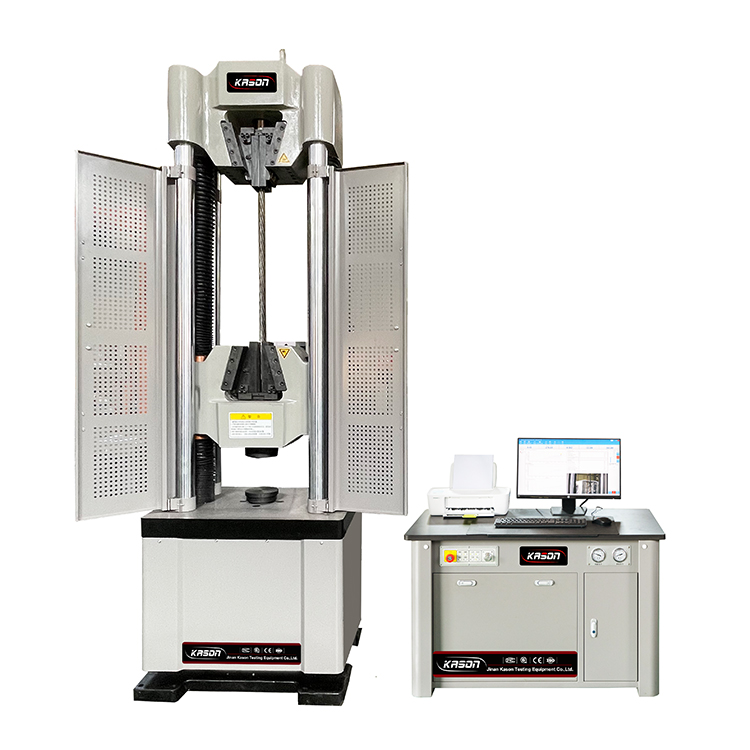

600kn 1000KN electro-hydraulic servo computer control steel strand wire tensile testing machine
Application:
Fastener, rebar, chain, welds, castings, stranded steel wireStandards:
ASTM A370, ASTM A416, ISO6934.4
Technical Parameters:
Model
HUT605E
HUT605W
HUT105E
HUT105W
Max. Load(kN)
600
600
1000
1000
Load Accuracy
Class 1/ Class 0.5
Load Range
2%~100%FS
Load Resolution
1/350000
1/350000
1/350000
1/350000
Deformation Measurement Range
2%~100%FS
2%~100%FS
2%~100%FS
2%~100%FS
Deformation Accuracy
≤± 1%
≤± 1%
≤± 1%
≤± 1%
Displacement Resolution
0.01mm
0.01mm
0.01mm
0.01mm
Displacement Error
≤±0.5%
≤±0.5%
≤±0.5%
≤±0.5%
Max. Piston Stroke(mm)
200
200
250
250
Max. Tension Test Space(mm)
1350
1350
1350
1350
Max. Compression Test Space(mm)
1000
1000
1000
1000
Column Effective Spacing(mm)
580
580
580
580
Clamping Method
Hydraulic Automatic Clamp
Flat Specimen Clamping Width(mm)
150*100
150*100
150*100
150*100
Compression Plate Size
Φ 160mm
Power Supply
3-phase, AC380V, 50Hz (Can Be Customized)
