Application:
It is applicablefor wide range of material for tension, compression, bending, shearing and low cycle test.Suitablefor metal, rubber, plastic, spring, textile, and components testing.It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Standard:
ASTM, ISO, DIN, GB and other international standards.
Main Technical Parameters:

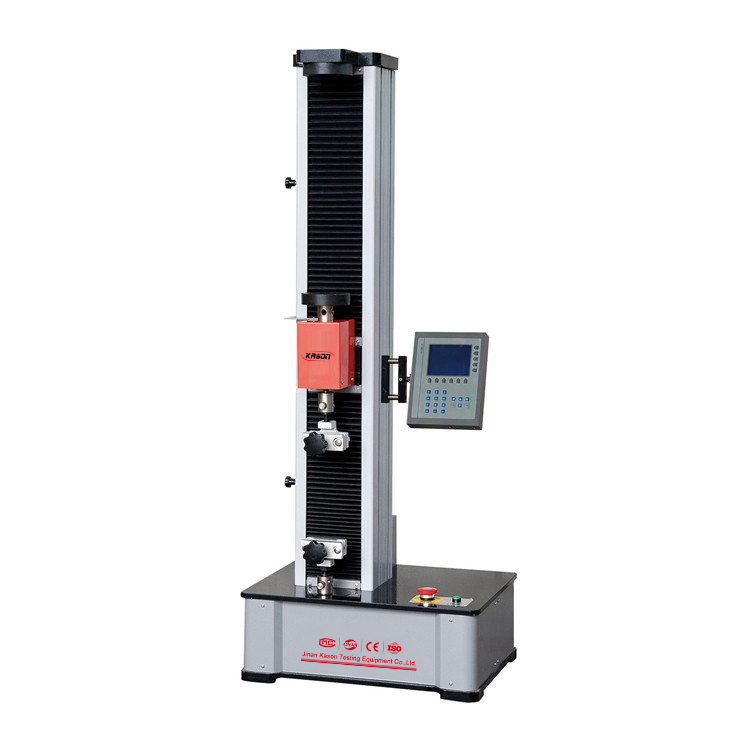

Model | KASON WDS-01,02,03,05,1,2,3,5 |
Structure | Single column double spaces |
Max. Load(kN) | 0.1, 0.2, 0.3, 0.5, 1, 2, 3 ,5 |
Material | All aluminum alloy surface spray painting shell |
Load accuracy | ISO 7500Class1 |
Load range | 2%~100%F·S |
Load resolution | 1/ 50000 |
Resolution of displacement | 0.01mm |
Test speed(mm/min) | 1-500stepless arbitrary setting |
Speed accuracy | within ±1% set speed |
E-Tensile space(mm) | 600(can be customized) |
E-Compression space(mm) | 600(can be customized) |
D-Test width(mm) | 100 |
F-Beam travel distance(mm) | 772 |
H-Workbench thickness(mm) | 26 |
G-Base height(mm) | 158 |
Power supply | AC220V±10%,50Hz/60Hz(can be customized) |
