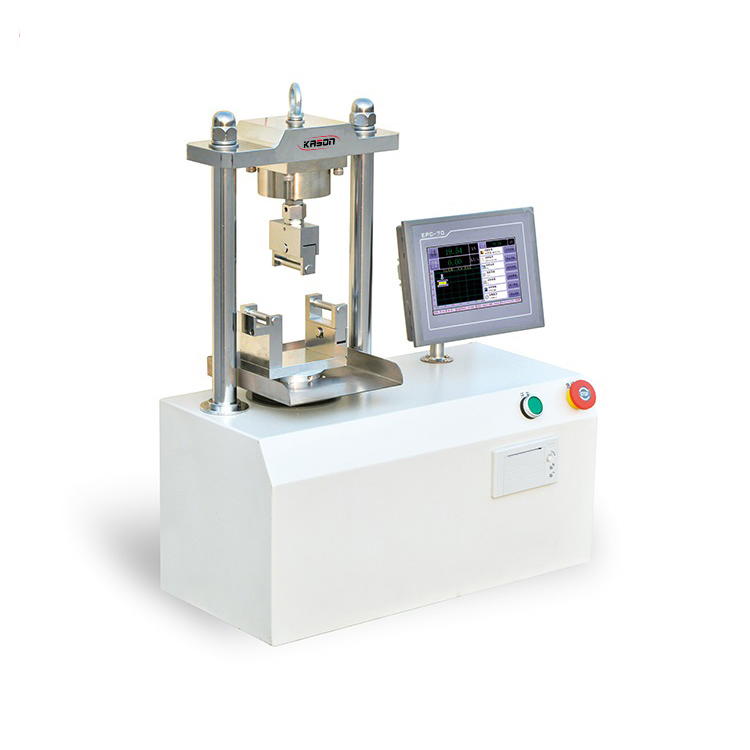

Cement Mortar Flexure Testing Machine
Product Details
1.Application:This machine is mainly used to test the flexural strength of cement mortar in 40×40×160mm prism.
2.Main Technical Parameters:
| The Max Flexural Strength | 10KN |
| Loading Rate | 50 N / s ± 5N / s |
| Showing The Value Of The Relative Error | <± 1% |
| Test Force Resolution | 1/200000 |
| The Testing Space (H x W) | 180x165mm |
| Maximum Stroke | 40mm |
| Power | 80W |
| Power Supply | AC220 ± 10% V / 50 Hz |
