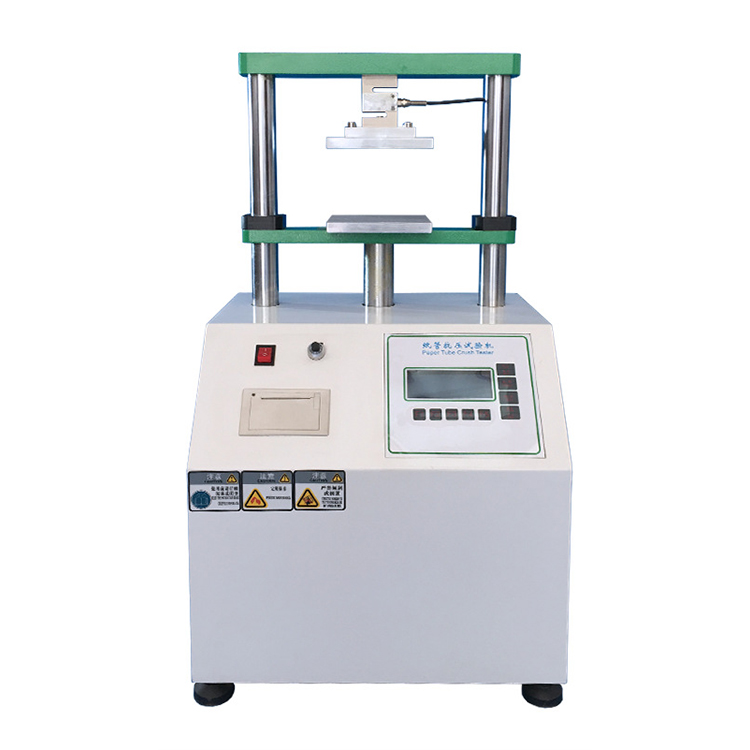

Paper Ring compression Tester
1.Summary
The compression testing machine is produced according to the national standard CNS, and the design requirements are according to the instrument method inspection of paper and paperboard. Can be carried out paperboard and core paper cyclic compressive strength test under specified conditions, and the machine also can be extended to the flat corrugated pressure strength test, compressive strength test, the degree of adhesion
test and compression test. At the same time the machine is also in line with the high precision load and load monitor, make the load values can be directly read.
2.Features:
1).Instrument function host ,the user can order separately according to actual conditions corresponding accessori
es, to achieve a variety of base paper and corrugated board strength test.
2). Statistical processing with test data can be printed out.
3). Mechatronics design, compact structure, nice appearance, easy maintenance.
3.Speficiations:
|
Model |
KASON- CTMP02 |
KASON- CTMP05 |
KASON- CTMP1 |
KASON- CTMP2 |
KASON- CTMP5 |
|
Capacity(Kg) |
200 |
500 |
1000 |
2000 |
5000 |
|
Units switch |
Kgf, gf, N, kN, Lbf, |
||||
|
Unit Stress |
MPa、kPa 、kgf/cm2 、lbf/in2 |
||||
|
Accuracy |
±1% /±0.5%(Optional) |
||||
|
Capacity |
0.1N |
||||
|
Display Mode |
LCD or Computer(optional) |
||||
|
Compression plate size |
150* 150 mm |
||||
|
Test space |
Paper tube diameter:200 mm ; 200*200 |
||||
|
Test speed |
10- 150mm/min |
||||
|
Return speed |
0~30mm/min (can be set) |
||||
|
Printer |
Thermal printer |
||||
|
Power supply |
220V, 50/60Hz |
||||
