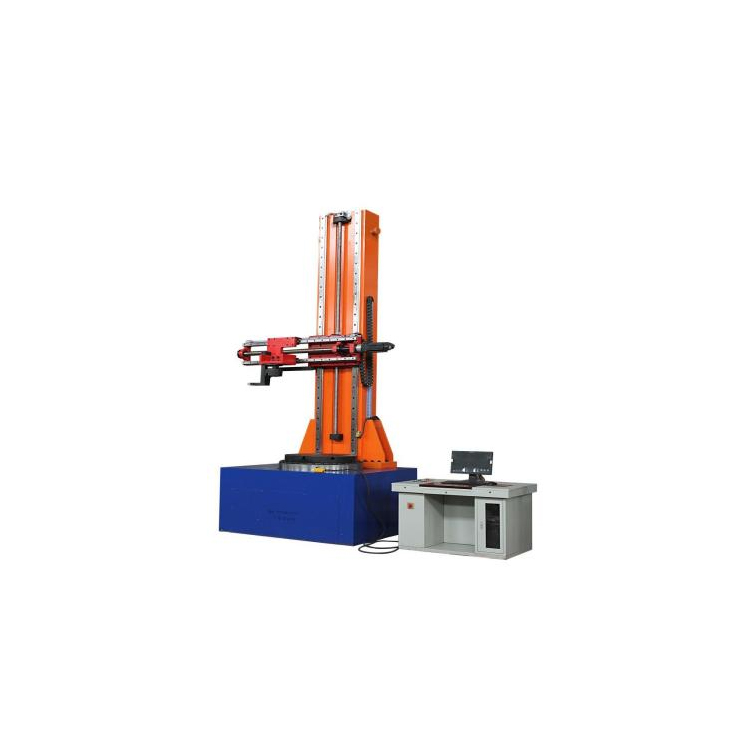

50kn Computer Controlled Electronic Bending and Torsion Testing Machine

I. Introduction

Our HL-HWN series electronic bending and torsion testing machines are suitable for bending and torsion testing of pillar insulators. They can be used for pillar insulators, composite insulators, pin insulators, rod insulators, rod composite insulators, glass insulators, lightning arresters, and sheaths. Bending and torsion testing of insulators, porcelain core rods, composite core rods, bushings, hollow insulators, wall bushings, etc. Meet the bending test, torsion test, deflection test under load and mechanical test one by one for pillar porcelain insulators of 1000kV and below.

The processing of all parts of the company's products is controlled by the ISO9001 quality management system. Key outsourced components are all imported, which effectively improves the accuracy and long-term stability of the equipment.

II. Parameter:

1. Maximum specimen height: 1500mm

2. Accuracy level: Level 1

3. Maximum bending load: 50kN

4. Effective measurement range of bending test force (kN): 0.5%～100%F·S (0.5kN～50kN)

5. Load resistance measurement accuracy: within±0.5% of the indication value

6. Bending stroke: 1000mm (deformation amount)

7. Bending control method: electronic servo closed-loop control (force, displacement, deformation closed-loop arbitrary program control)

8.Maximum torque: 20kN.m

9. Effective measurement range of torsion test force (kN): 1% ~ 100%F·S

10. Torsional load measurement accuracy: within ±1% of the indication value

11. Four-point direction bending conversion method: 90° automaticlly completed

12. Torsion angle: 90° arbitrary control (torsion loading speed, angle-time, force value-time can be freely selected and controlled);

13. Torsion angle measurement accuracy: 0.1°

14. Torsion control method: electro-hydraulic servo closed-loop control (force, displacement, angle closed-loop arbitrary program control)

15. Control error during load holding: ≤±1%

16. Test force speed control adjustment range: 0.5～10%F·S/s

17. Relative error of test force speed control:

When control speed <0.05% F·S/s: ±1%

When force control rate ≥0.05% F·S/s: ±0.5%;
