Application:

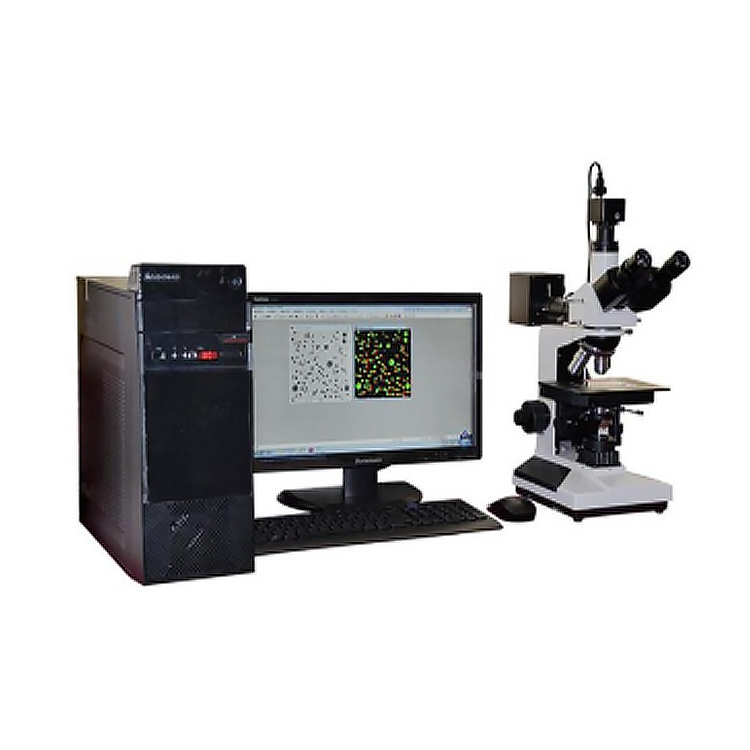

Carbon Black Dispersion Tester is a system to determine the carbon black dispersion of polyolefin pipe, fittings and compound material. It is also suitable for pigment dispersion test.
Standard:
ISO 18553, IEC 60811-4-1, IEC 60811-607Specification:
Model | KS-467 |
Eyepiece | 10X |
Objective lens | 5X 10X 40X 60X |
Microscope | Upright metallurgical microscope |
Measuring range | 1um~1cm |
Scale ruler | 1000μm/1μm |
Image capture | Single acquisition or continuous acquisition |
Image process | Automatic |
Measuring mode | Automatic or manual |
Imaging resolution | 2592×1944 (5 mega-pixel) |
Power supply | AC220V 50Hz |
Weight | 10kg |
