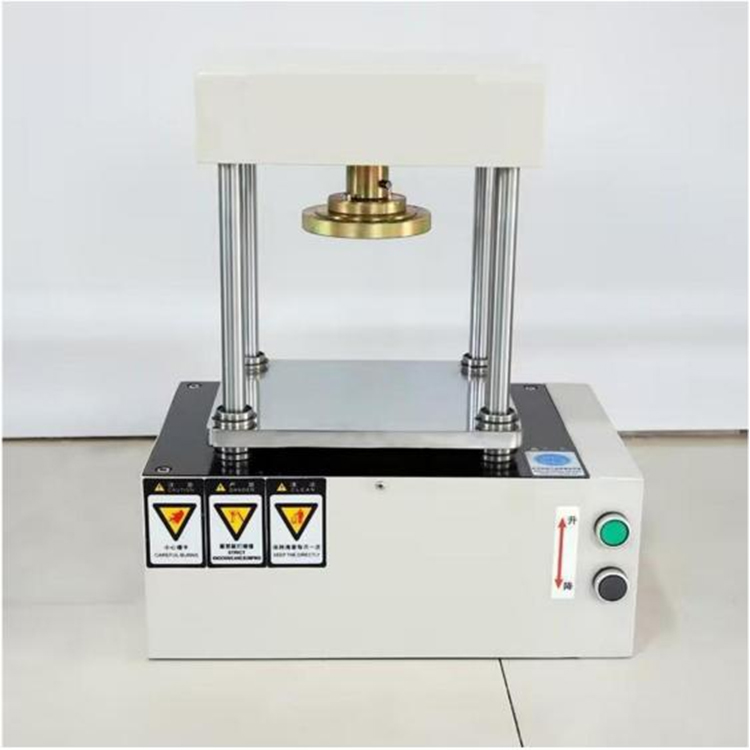

KS1825 Electric Punching Machine
1、 Overview
This machine is used by rubber factories and research institutions to punch standardrubbertest pieces before tensile testing. For similar materials, this machine can also beusedforpunching. This machine is electrically controlled and hydraulically lifted. Simply manipulatethe up and down direction buttons to complete the cutting action, making it easy, fast, andlabor-saving to operate.2、 Main technical specifications
（1） Travel range: 20mm~100mm
（2）Blanking force: approximately 15kN
（3）Workbench size: 180mm × 250mm
（4） External dimension: 350mm × 220mm × 450mm
（5） Power supply voltage: 220V 50Hz
（6）Weight: 60kg
