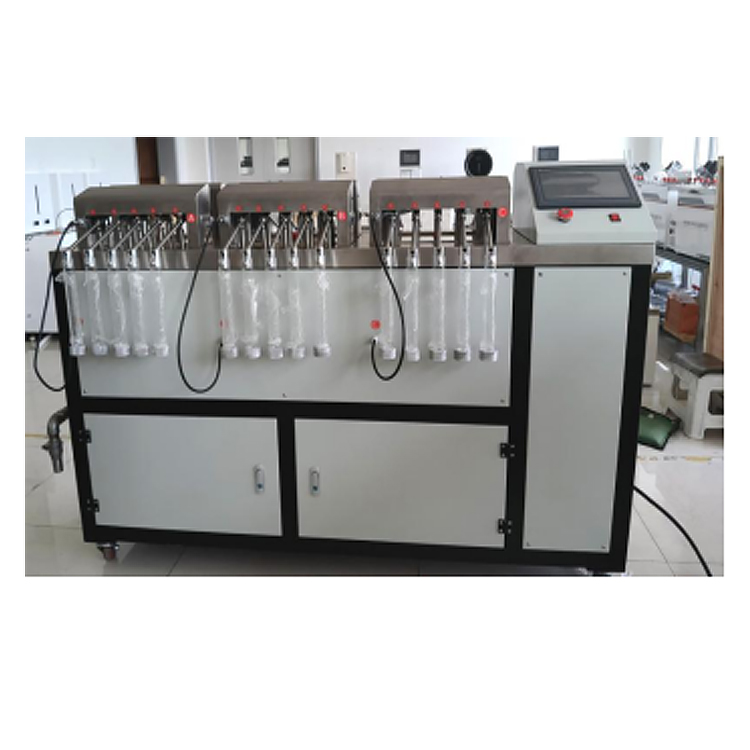

ASTM D5397 Notched Constant Tensile Load (NCTL) Tester
Application:
Notched Constant Tensile Load Tester is used to evaluate the stress crack resistance of notched plastic sheet under constant tensile load.
Standard:GB/T 17643- D-2011,ASTM D5397-1999,CJ/T 234-C-2006,etc.
Specifications:
| Model | KS-NCT30 |
| No. of test unit | 6 or customize |
| Working position | 5pcs per test unit |
| Load range | 200~1370g |
| Tube weight | 196±3g |
| Tube bearing weight | 600g |
| Timing range | 1s~9999h59min59s |
| Timing accuracy | 1s |
| Timing deviation | 1min |
| Volume of bath | 125L |
| Temperature control range | RT~80℃ |
| Display resolution | 0.1℃ |
| Temperature accuracy | ±0.5℃ |
| Clamp axis diameter | Φ6 |
| Operation temperature | 10~35℃ |
| Heating power | 3.0kw |
| Power supply | Single phase, (187~242) VAC, 50Hz, 4.5kw |
| Dimensions | 1900×500×1400mm (L×W×H) |
| Weight | 180kg |
