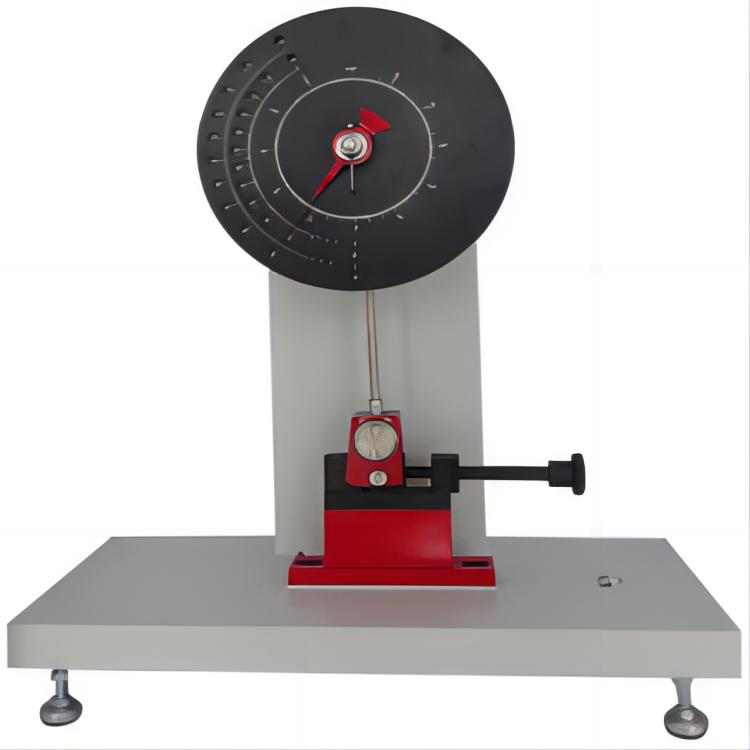

XJU-5.5 ASTM D256 Izod Pendulum Impact Testing Machine
Application:
This Impact Test is mainly used to measure the impact toughness of rigid plastic, reinforced nylon, fiberglass, ceramics, cast stone, insulation materials and other non-metallic materials. It is the ideal testing equipment in the chemical industry, scientific research institutes, universities and quality testing departments.
Standard:
ISO180, ASTM D256 and the equivalent.
Specification:
|
Model |
KSXJU-5.5 |
KSXJU-22 |
|
Standard |
ISO180,ASTM D256 |
|
|
Display |
Dial |
|
|
Impact velocity |
3.5m/s |
|
|
Impact energy |
(1J optional), 2.75J, 5.5J |
11J, 22J |
|
Impact center distance |
335mm |
|
|
Pendulum angle |
150° |
|
|
Scale division |
0.01J, 0.025J, |
0.1J, 0.2J |
|
Distance between striking |
22.0mm±0.2mm |
|
|
Corner radius of striking |
R=0.8mm±0.2mm |
|
|
Power supply |
AC220V, 50Hz |
|
|
Dimensions |
830×300×890mm |
|
|
Weight |
100kg |
|
