Introduction:

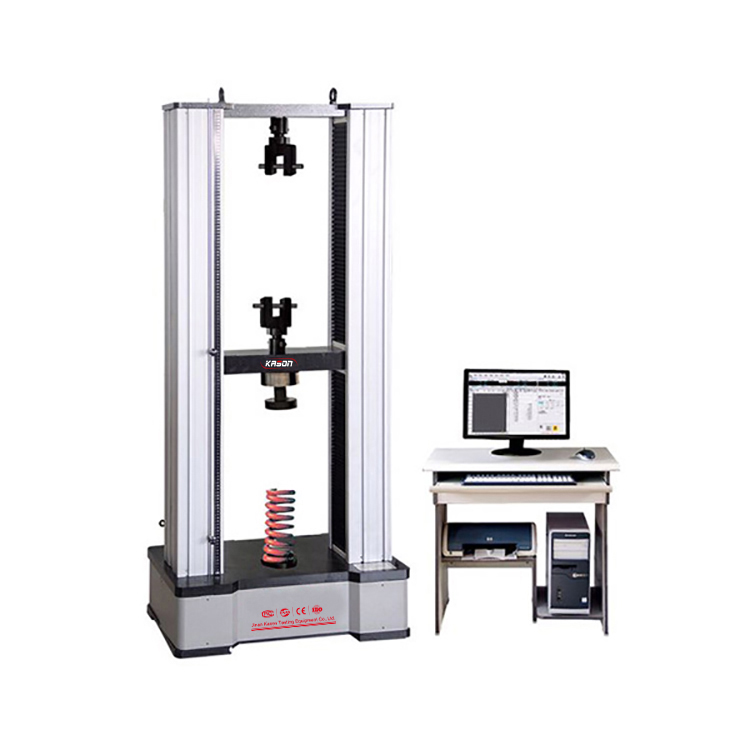

This machine adopts electric loading and deceleration system to reduce the speed and drive the precision ball screw to load, which realizes the digital adjustment of the data acquisition and control process. It can test and analyze the tensile force, pressure, displacement and stiffness of precision springs such as tension springs, compression springs, disc springs, tower springs, leaf springs, circlips, leaf springs, composite springs, gas springs, mold springs, and special-shaped springs.Model | TLS-W10/20/30 | TLS-W50 | TLS-W100 | TLS-W200/300 |
Max. Testing force | 10KN/20KN/30KN | 50kN | 100kN | 200KN/300KN |
Structure | Door Type | |||
Control type | Computer control | |||
Accuracy | 1 class | |||
Testing range | 2%~100%F·S | |||
Relative error of test force indication | ≤±1% | |||
Relative error of displacement indication | ≤±1% | |||
Displacement display resolution | 0.01mm | |||
Deformation indication error | ≤±(50+0.15L)um | |||
Speed range | 0.05-1000 mm/min | 0.05-500 mm/min | 0.05-500 mm/min | 0.05-200 mm/min |
Diameter of compression plate | 110mm | |||
Power | AC220V±10%,50Hz |
