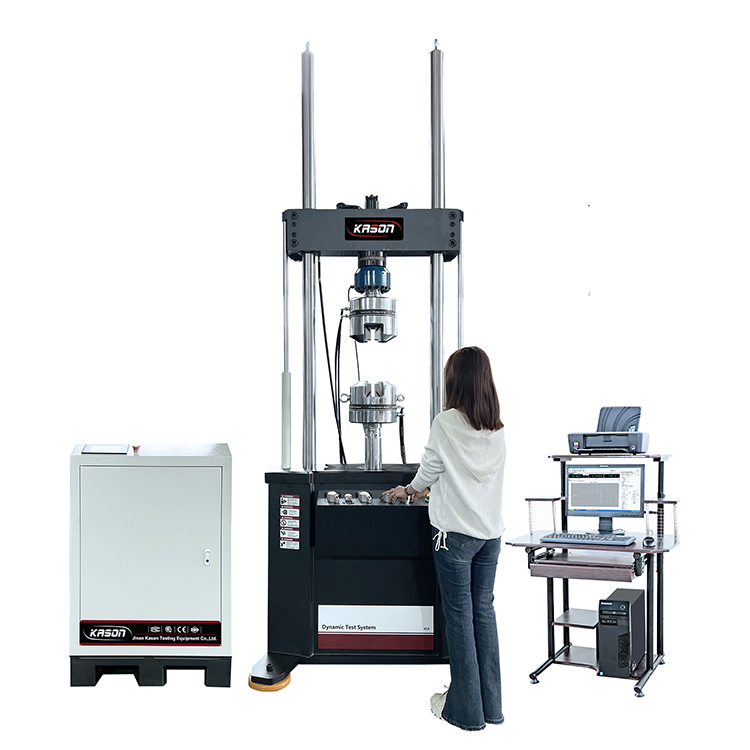

Servo Hydraulic Steel Plate Spring Fatigue Testing Machine/Equipment
KASON-PBW300 electro-hydraulic servo steel plate spring fatigue test bench meets the requirements of GB/T19844-2005, JB3383
| No. | Main specifications, technical parameters and technical indicators. | |
| 1 | Maximum static test force | ±300kN |
| 2 | Distance between columns | 760mm×580mm |
| 3 | Available test space | ≥1000mm |
| 4 | Up and down space adjustment | Hydraulic lifting and descending |
| 5 | Frequency range | 0.5-5Hz |
| 6 | Test force indicator precision | ±1%（2%-100%FS） |
| 7 | Actuator effective distance | ±150mm |
| 8 | Main test wave forms | Sine, triangle, square wave, oblique wave and other programmed waves. |
| 9 | Working environment temperature range | 10 ℃—45℃ |
| 10 | Displacement indicator accuracy | ±1.0%FS |
| 11 | Pump specifications | 21Mpa,360L/min， |
