Application

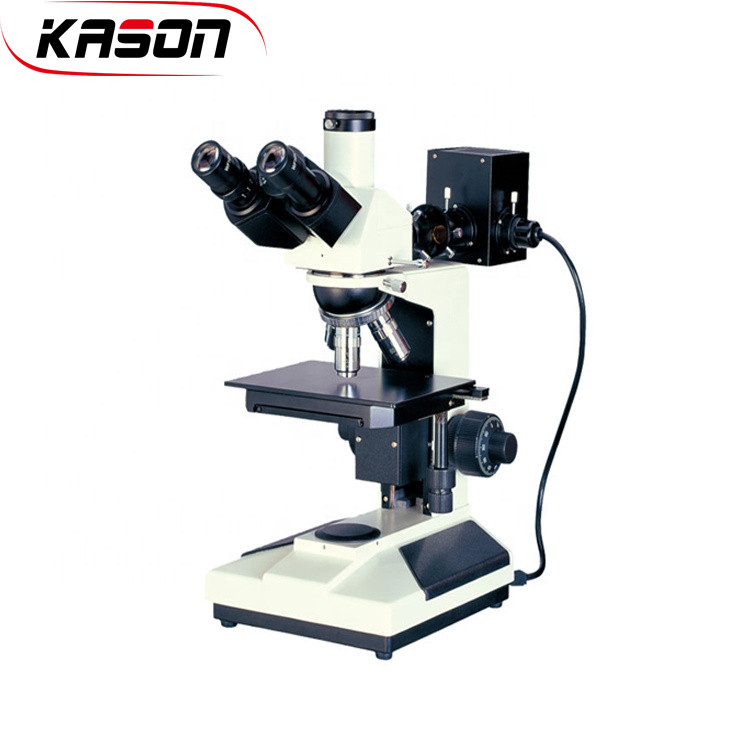

FL7500 Series Metallographic Microscope used for microscopic observation of opaque objects or transparent objects. Observing particles of power metallurgy, metallographic organization, etc. Has measuring software, computerized display images, and observed and measured. This type has Epi-illuminator, long achromatic objective lens (no cover glass), wide-field eyepieces and set polarizer device. Image clarity, easy operate. Beautiful exterior and easy operate. It is the ideal instrument for metal, mineralogy, precision engineering research. Suit for schools, research, factories and other departments. Specification
Model
FL7500
Eyepiece
Wide field WF10X(Φ18mm)
Objective
Long achromatic objective lens (no cover glass) PL 5X/0.12
Long achromatic objective lens (no cover glass) PL L10X/0.25
Long achromatic objective lens (no cover glass) PL L40X/0.6
Long achromatic objective lens (no cover glass) PL L60X/0.75
Observation tube
Compensation Free Trinocular, 30° tilt, (built inspection polarizer, can be switched)
Lighting system
6V 20W, Halogen lamp, brightness can be adjusted
Epi-illumination system
Epi-illuminator with optical measurement, aperture diaphragm, polaroid. With frosted glass; yellow, green and blue color filters basic configuration
Focusing mechanism
Coaxial coarse focus, Micro-grid value:2μm, Coarse dynamic elastic adjustable, with lock and limit device
