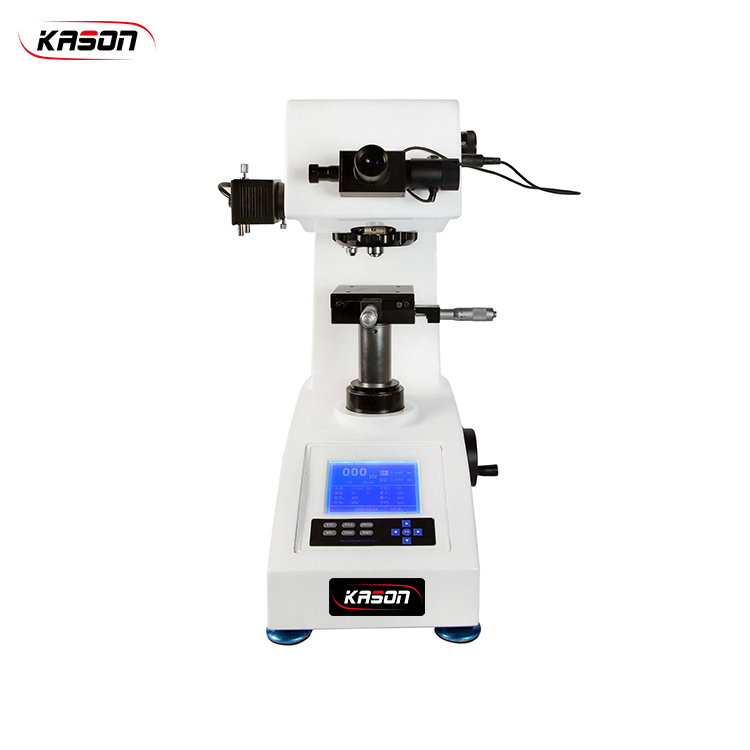

Automatic Turret Digital Display Knoop Hardness Tester

Production Introduction

HTK-1000AD automtaic turret digital display knoop hardness tester LCD display screen is adopted, and the operation interface adopts menu structure. The hardness scale HV or HK can be selected on the operation panel. The hardness value tested will be automatically calculated and displayed. Various hardness values can be converted to each other.

Application：

Heat treatment, carbonization, hardening layer, surface coating, steel, nonferrous metals, small and thin parts, etc.

Technical Parameter

Model: HTK-1000AD

Test force: 10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、200gf (1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N)

Minimum test unit: 0.031µm

Exchange Scales: HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T

Measuring range: 5~3000HV

Test method of force application: Automatic( loading, dwelling,unloading )

Test microscope magnification: 100X（objective）400X(measurement)

Test load dwell time: 0~60s

X-Y table size：100*100mm Mx. movement：25*25mm

data output: LCD display，Built-in printer and rs-232 interface

Max Height of Specimen: 110mm

Distance from the center of the head to the outer wall: 110mm

power supply: AC220V+5%，50-60Hz

Dimensions: 405*290*480mm

Weight: 40Kg
