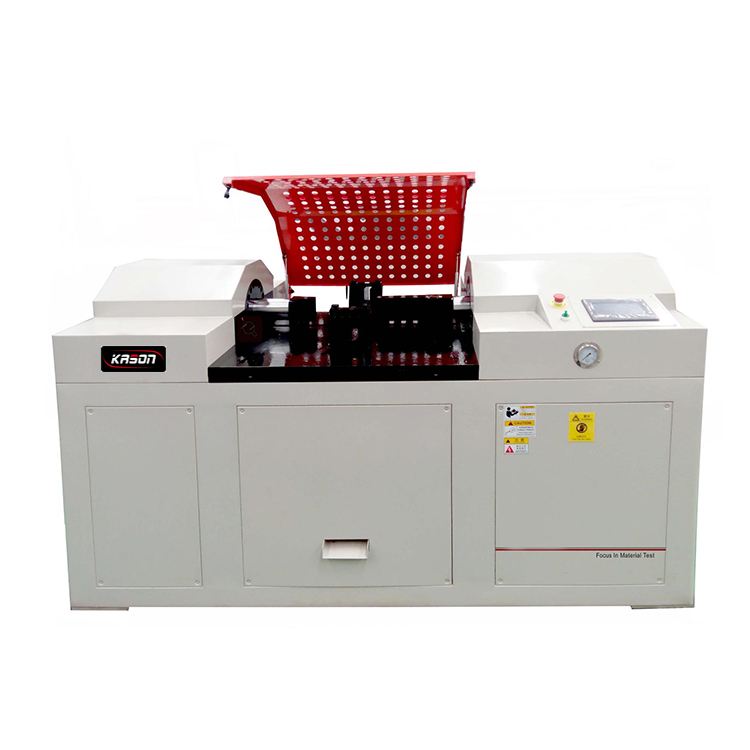

Double Cylinders Steel Rebar and Plate Bending Testing Machine
Application:
This type of testing machine is designed to perform bend test on metallic materials, like rod steel, plate steel and threaded steel. It features dual-direction hydraulic loading, easy to bend specimen with diameter less than 50mm to 180° .Hand wheel drives dual-direction screw lead to adjust the support roller span. The support roller is self-lock; no need any spanner to tighten. Plug-in type mandrel is simple to change. This equipment provides speed adjustment function,and displacement and speed display function,fully complying with Clause 6.3 of ISO 7438:2005:“In case of dispute,a testing rate of(1±0,2) mm/s shall be used". It can also real-time display bending angle and facilitate for various angle tests.
Specifications:
|
Model |
KASON-GW-H50AT |
|
Bending Diam Of Steel Bar(mm) |
Ф6-Ф50 |
|
Max pushing force(KN) |
500 |
|
Main Cylinder max travel(mm) |
400 |
|
Vice cylinder max travel(mm) |
200 |
|
Forward Bending Angle |
0°～180° (the angle can be set freely in the range)l |
|
Reverse Bending Angle |
20°,23°, |
|
Maximum working pressure of system
|
25 MPa |
|
Round specimen diameter(mm) |
Φ6~Φ50 |
|
Flat specimen thickness(mm) |
(6~40)x50 |
|
Mandrel diameter(mm) |
|
|
Distance between the rollers(mm) |
650 650 |
|
Span rollers adjustment mode |
Electric adjustment Electric adjustment |
|
Motor Power (kw ) |
2.3 |
|
Voltage |
380V/50HZ/3 phase |
