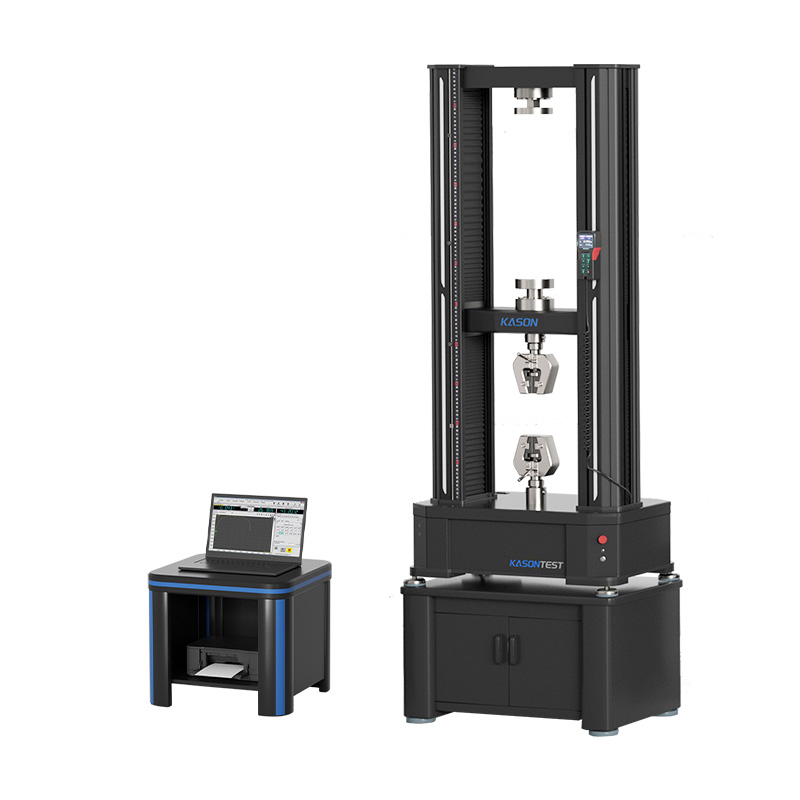

50KN Electromechanical Universal Testing Machine for Tensile, Compression and Bending Tests on Metals, Plastics,

50KN Electromechanical Universal Testing Machine for Tensile, Compression and Bending Tests on Metals, Plastics,
50KN Electromechanical Universal Testing Machine for Tensile, Compression and Bending Tests on Metals, Plastics,
50KN Electromechanical Universal Testing Machine for Tensile, Compression and Bending Tests on Metals, Plastics,

Introduction

ETM series electromechanical testing machines offer force, displacement or deformation closed loop testing in tension, compression, flexure, shear, tear and peel etc. The machine can be equipped with a variety of accessories including: grips, fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber, plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and medical, electronic and other components. The load frames are rigid constructed, providing superior axial and lateral stiffness.
Standards
Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221, DIN-51223, DIN-51227, DIN-51228, UNE-7-474-92,
Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846, EN 10002-4.

Safety: This machine shall conform to all relevant European CE Health and Safety Directives EN 50081-1, 580081-1, 73/23/EEC, EN 61010-1


Main technical parameters
Model KASON ETM 504
Measurement Parameters
Load Capacity 50KN
Load measurement Universal strain-gage load cell (tension-compression). Additional load cells can be installed
Load accuracy Class 0.5 according to ISO 7500-1 - Meets ASTM E-4
Measuring Range of test force 0.2%-100%FS
Indicating error of test force Within ±0.5% of indicating value
Load resolution Capacity/ 500, 000 (fully auto scaling of single measurement range)
Deformation measuring range 0.2%100%FS
Deformation accuracy ≤±0.5%
Deformation rate adjustment range 0.025%FS
Displacement accuracy Within ±0.5% of the value
Displacement resolution 0.04μm
Control Parameters
Adjustable range of force control rate 0.001%~5FS/s
Control accuracy of force control rate When rate is less than 0.05%FS/s, within ±2% of setting value;
When rate is no less than 0.05%FS/s, within ±0.5% of setting value.
Adjustable range of deformation rate 0.0055%FS/s
range
Control accuracy of deformation rate When rate is less than 0.05%FS/s, within ±2% of setting value;
accuracy When rate is no less than 0.05%FS/s, within ±0.5% of setting value.
Crosshead speed range 0.0011000mm/min
Crosshead speed accuracy Within ±0.5% of the value
Mainframe parameters
Testing space (Crosshead Travel) 1175mm
Max. Tensile Testing Space 845mm
Test width 450mm
Machine Dimension 810x420x1850mm
Approx Weight 420kg
Power supply AC220V±10%,50Hz/60Hz
Power consumption 1kW
