1. Application

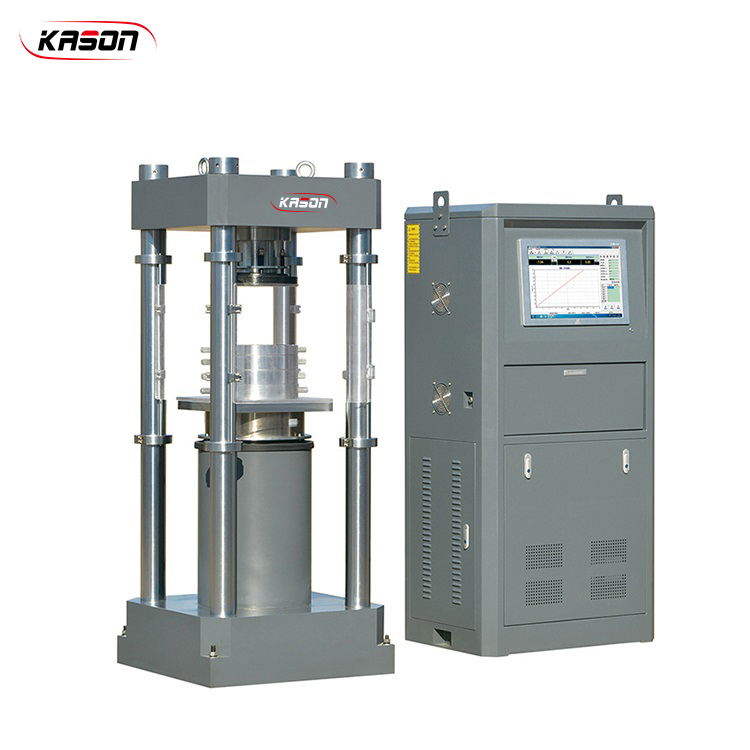

YAW-BHSeries Compression Testing Machine mainly used for concrete rupture strength testing, cement, plastic sand, and red brick building materials compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
2. Features
2.1 Computer control up, down, test, stop and loading progress
2.2 Electric screw ball adjust test space
2.3 Unibody desktop oil source control cabinet
2.4 This machine consist of the host machine, oil source and control system.
2.5 Can realize the load rate, such as load or stress rate loading
2.6 Can auto printing
3. Technical parameters
Model |
YAW-2000BH |
YAW-3000BH |
Max. Load |
2000 kN |
3000 kN |
Control method |
Computer auto control loading process |
|
Oil source control cabinet structure |
One-piece oil source control cabinet |
|
Test class |
1 class |
|
Testing range |
4%-100% FS |
|
Load display accuracy |
Better than ±1% |
|
Piston stroke |
200 mm |
|
Distance between upper and lower platen |
400 mm |
|
Size of upper and lower platen |
Φ300 mm |
|
Power supply |
2.0Kw/AC380V |
|
Host size |
720×720×1610 mm |
|
Control cabinet size |
700×540×1500 mm |
|
Weight |
2700 Kg |
