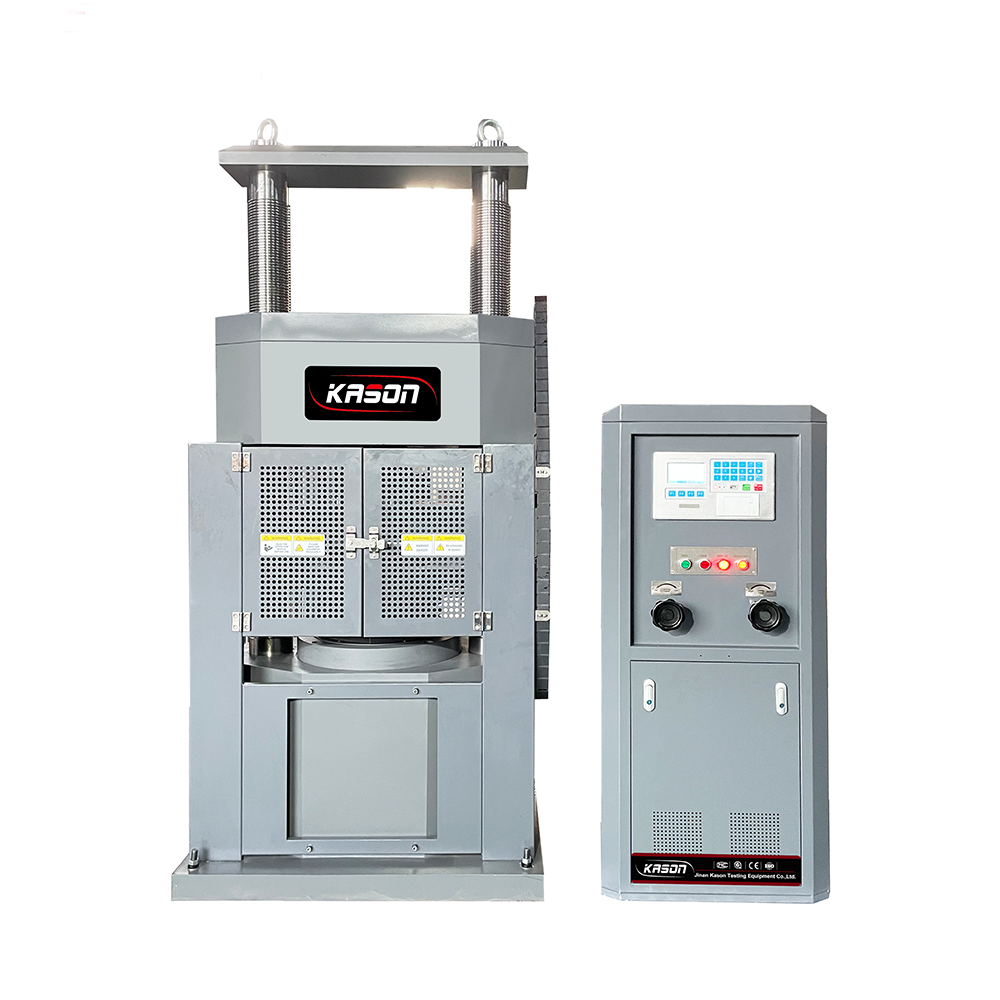

200ton Used Load Cell Hydraulic Concrete and Cement Compression Testing Machine
1. Application
The Compression Testing Machine with PC&Servo Control is designed for testing the compressive strength of building materials such as brick, cement mortar and concrete; it is electro-hydraulically powered and the pressure applied on the specimen can be displayed directly; The maximum force value can be maintained and the data measured can be saved when the power is off; The test data can be processed automatically and the test report can be printed2. Main Specifications
| Model | YES-2000EG | YES-1000EG |
| Max. load | 2000kN/200Ton | 1000kN/100Ton |
| Machine Class | 1 class | |
| Range of test force | 4% ~100%FS | |
| Host Structure | Double electric screw ball adjust test space | |
| Indicating value accuracy | ±1% | |
| Piston stroke | 150mm | |
| Distance between upper and lower platen | 600mm | |
| Upper and lower platen size | 300*300mm (Can be customized) | |
| Display | LCD | |
| Power supply | AC380V/50Hz/3 phase(can be customized) | |
| Size | 900×400×1150 mm | |
| Weight | 750kg | |
