1. Application

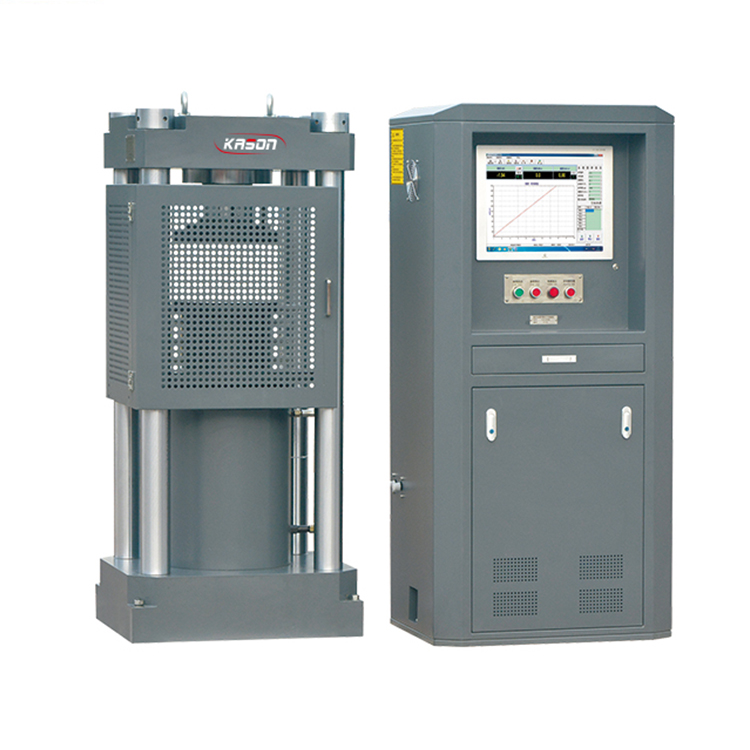

YAW-BG Series Compression Testing Machine mainly used for concrete rupture strength testing, cement, plastic sand, and red brick building materials compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.Model | YAW-2000BG |
Max. Load | 2000kN |
Control method | Computer auto control loading process |
Oil source control cabinet structure | One-piece oil source control cabinet |
Test class | 1 class |
Testing range | 4%-100%FS |
Load display accuracy | Better than ±1% |
Piston stroke | 200mm |
Distance between upper and lower platen | 360mm |
Size of upper and lower platen | Φ300mm |
Power supply | 2.0Kw/AC380V |
