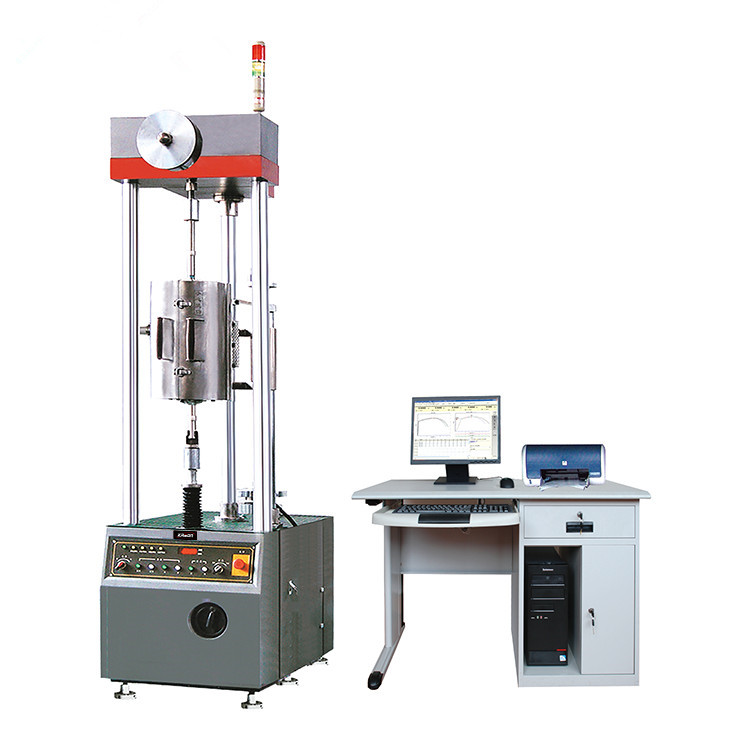

best price computer control astme139 universal accelerated creep rapture strength testing machine
1.Application:
The creep and rupture strength testing machine is an important equipment to determine the characteristi of metallic materials under high temperature. The significance of this instrument is more prominent especiall in selecting materials for high temperature structures, increasing the reliability in estimating the life of working components, monitoring the safety ofworking components as well as the research and development of new materials.
Specifications:
|
Model |
MCR-80 |
|
Load Range (kN) |
0.8-80 |
|
Dimension of chamber (mm) |
Φ120x460 |
|
Size of Specimen (mm) |
Creep test:φ10x100 Rupture strength test: φ10x50 |
|
Load deform. & disp. Measuring range (mm) |
0-2 |
|
Indicating accuracy / Min. Resolution (mm) |
Grade 02/0.0001 |
|
Power supply |
3Ph, 380V 50Hz |
