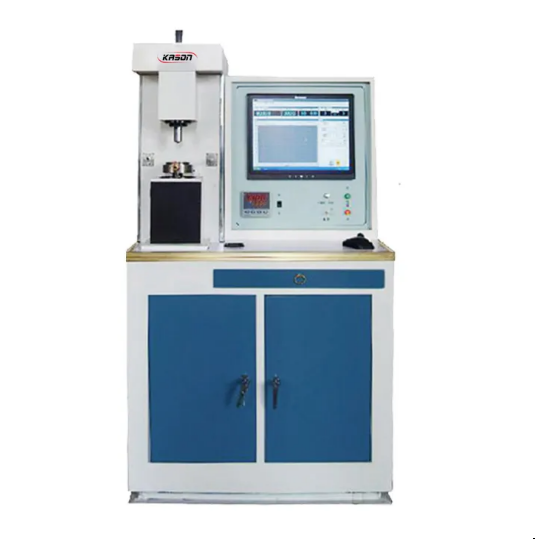

MMW-1 Vertical Computer Control Universal Friction And Wear Testing Machine
1.Features:
The machine adopts process control principle, and combines industrial control computer with the
configuration software technology and internet technology; Apply incorporate structure design,
integrate embedded industry computer, configuration software, acquisition module and executor as
a whole to control the test process, all test operation can be completed at the main interface of the
Computer. It features flexible configuration control mode, multiple friction couplings, wide speed
adjusting range, simulating high temperature circumstances, high automation and easy to use.
2.Main Specifications:
1.Test Force
NO.
Item
Specification
1.1
Axial Test Force Working Range
10N~1000N (Stepless)
1.2
Relative Error Of Load Indicating Value
±1 %
1.3
Discriminability Of Test Force Indicated Value
±1.5 N
1.4
Test Force Automatic Loading Rate
400 N/min
1.5
Relative Error Of Test Force Automatic Hold Indicated
Value In A Long Time
±1 %
2.Friction Moment
2.1
Max. Testing Friction Moment
2.5 N.m
2.2
Relative Error Of Friction Moment
Indicating Value
±2 %
2.3
Friction Force Weighing Transducer
50 N
2.4
Friction Force Arm Distance
50 mm
3.Spindle Stepless Speed Variation Range
3.1
Stepless Speed Variation
5~2000 r/min
3.2
Error Of Spindle Speed
±1 %
4.Test Medium: Oil, Water, Slurry, Abrasive etc.
5.Heating System
5.1
Heater Working Range
Room Tempetature ~200℃
(Can Be Customed 260℃)
5.2
Jacketing Heater
Φ68*44, 220V, 300W
5.3
Temperature Measuring Control Accuracy
±(0.3+0.005t)℃
(“t” Is Absolute Value Of Test
Temperature)
6.Conicity Of Spindle Of Testing Machine: (1:7)
7.Max. Distance Between Spindle And Lower Disc: ＞75mm
8.Testing Machine Spindle Control
8.1
Manual Control
8.2
Time Control
8.3
Rotate Speed Control
8.4
Friction Moment Control
9
Time Display & Control Range
10 s~300 min
10
Rotate Speed display & control Range
(1~99) * 105
11
Output Max. Moment Of Main Motor
5 N.m
12
Overall Dimension (L*W*H)
860*740*1560 mm
13
Net Weight
650 KG
14
Power Supply
380V, 50Hz.
15
Computer & Data Processing Range:
Apply industrial control computer and configuration software to control the machine and test process, display different parameters in real time, record friction-time curve and temperature-time curve automatically.
Control: Load, time, temperature, test duration.
Curves: Temperature-Time, Friction- torque and Time etc.
Data can be printed by Excel.
