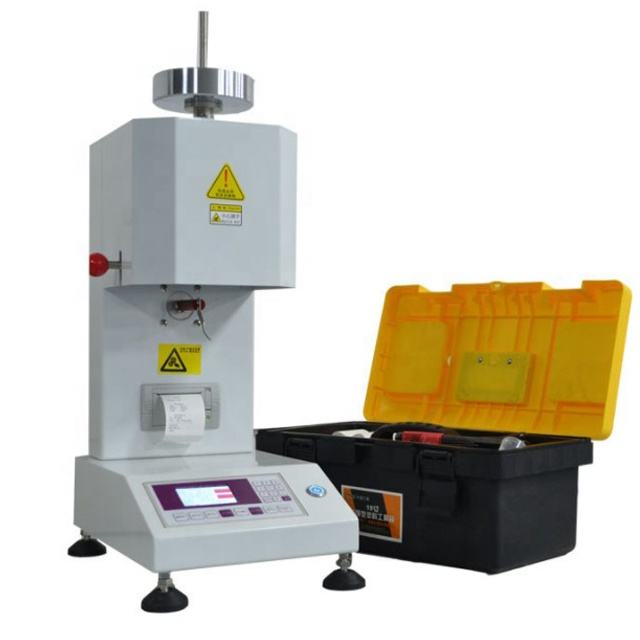

high quality lab digital automatic rubber and plastic melt flow index tester
Application:
This machine is not only suitable for engineering plastics such as polyethylene, polyarylsulfone, fluoroplastics, nylon, etc., with higher melting temperature, but also suitable for plastics with lower melting temperature such as polyethylene, polystyrene, polypropylene, ABS resin, and polyoxymethylene resin. test. Especially suitable for universities, research institutes, quality inspection institutions, plastic manufacturers, plastic products and petrochemical industries.
Standard
GB/T3682-2000 "Determination of Thermoplastic Melt Flow Rate and Melt Volume Flow Rate"
ISO 1133: 1997 "Determination of Thermoplastic Melt Mass Flow Rate MFR
ASTM D1238 "Standard Test Method for Measuring Thermoplastic Melt Flow Rate by Extrusion Plastometer"
Specification
|
Model |
XNR-400A |
|
Measuring Range |
0.1-400.00g/10min (MFR) |
|
Precision Of Temperature Control |
Room Temperature - 450°c |
|
Precision Of Temperature |
±0.2°c |
|
Precision Of Time |
1s or 0.01s |
|
Time Setting |
1~9999s or 0.01-99.99s |
|
Load |
Full Load |
|
Cutting Mode |
Manual, By Time |
|
Screw Barrel Internal Diameter(mm) |
9.550 ± 0.025 |
|
Screw Barrel Length(mm) |
160 |
|
Cavity Die(mm) |
Tungsten Carbide, L 8.000±0.025, Internal Diameter 2.095 ±0.005 |
|
Power(kW) |
0.45 |
|
Power Supply |
AC220V, 50Hz |
|
Dimension(mm) |
400*500*60 |
|
Net Weight(kG) |
60 |
