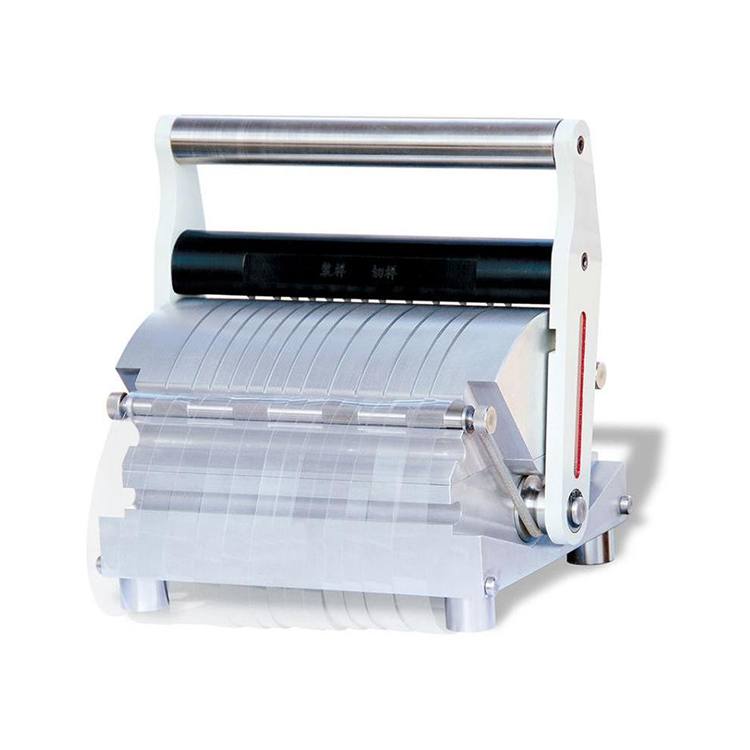

Plastic Film Strip Sample Cutting Machine
Application:
Plastic Film Strip Cutter is used to make sample strips for tensile test of BOPP, BOPC, BOPET, BOPA and other films.
Technical Parameters:
Plastic Film Strip Cutter is used to make sample strips for tensile test of BOPP, BOPC, BOPET, BOPA and other films.
Technical Parameters:
|
Model |
KS-FCD20 |
|
Cutting width |
10±0.1mm 7 pieces 15±0.1mm 5 pieces 20±0.1mm 3 pieces 25±0.1mm 3 pieces |
|
Cutting thickness |
≤0.25mm |
|
Specimen error |
≤±0.1mm |
|
Specimen length |
160mm |
|
Dimensions |
290×230×150mm (L×W×H) |
|
Weight |
15kg |
