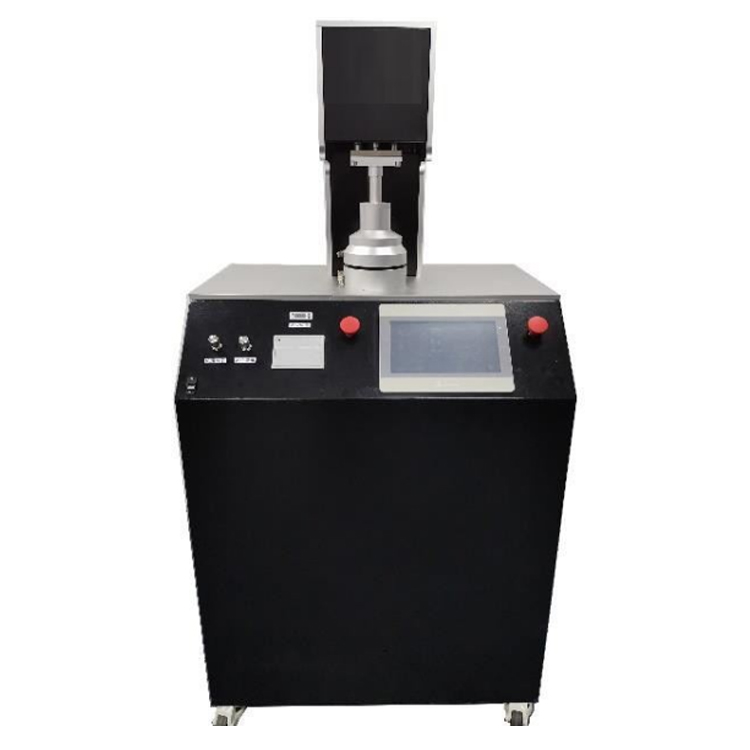

Face Mask Particulate Filtration Efficiency Testing Equipment

Product description:

Automatic Filter (Mask) Tester (Medical) is used to test the filter efficiency and differential pressure of fold mask, medical face mask and cup mask.

For filter efficiency test, this machine can do single-machine for dual-aerosol (both oily and salty particles). Customers can choose double generator or single generator according to their own needs. Additional clean air source system is required if you choose the double-generator.

Standards:

YY0469-2011 5.6.2 Particulate Protection Standard

Technical Specification：

Air source system:

Exhaust volume: 10 ± 100L / M

Solid aerosol particle size: 0.075 ± 0.02um

Concentration: ≤200mg / m3

Product model:  SUP_GLXT

Basic principle: Use an aerosol generator to generate a certain concentration of gas, and then use a photometer to measure the gas concentration to detect the particle size before and after breathing

NaCl concentration: 200mg / m3

Flow accuracy: 10-100L / min, accuracy 2%

Test medium: NaCl

Pressure: 500pa

Number of samples: 1 way

Structure composition: particle generator, flow detection device, concentration detection device.
