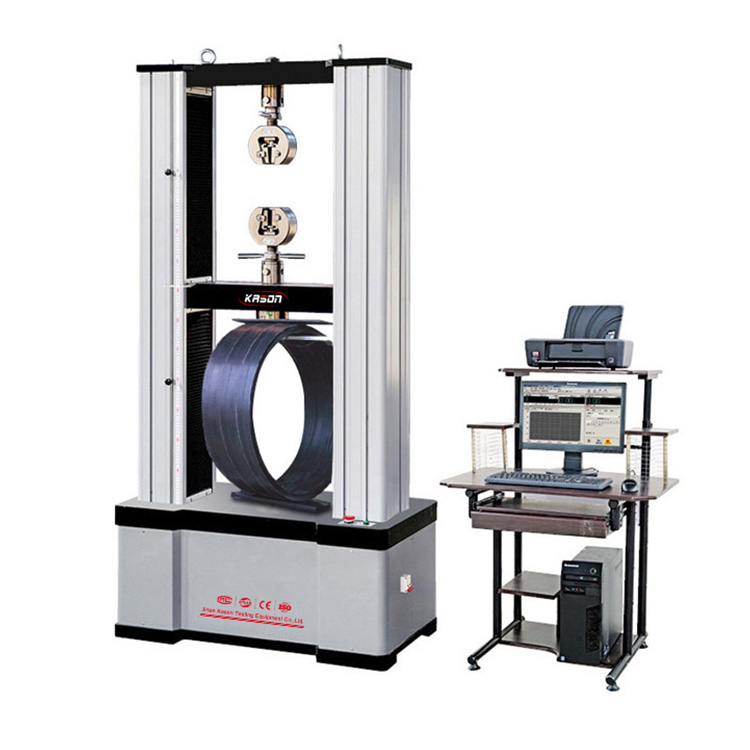

HGW Series Pipe Ring Stiffness Compression Testing Machine
Application:
HGW series (Dual Space) Pipe Ring Stiffness Testing Machine, is mainly used to determine ring stiffness,ring softness and compression of thermoplastic pies having circular cross-section. It conforms to the requirements of all kinds of plastic pipes, such as structured-wall pipes,PE corrugated pipes, helically wound pipes,etc.
The machine can meet ISO9969, ISO5893, ASTM D638, ASTM D790, ISO37, ASTM E4, ISO6892, ISO75000-1, EN 10002-4 standards and so on.
Technology Parameter:
| Model | HGW-30E | HGW-50E | HGW-100E | HGW-200E | HGW-300E |
| Max. Load(KN) | 30 | 50 | 100 | 200 | 300 |
| Calibration standard | Class 0.5 | ||||
| Load range | 0.4%~100% F.S | ||||
| Displacement resolution | 0.001mm | ||||
| Test speed(mm/min) | 0.05-500 | ||||
| Crosshead speed | ±0.5% of set speed | ||||
| Pipe diameter range | Customized(110mm-3000mmm) | ||||
| Effective testing width | According to customer’s requirements, ≥ pipe diamter *20% | ||||
| Power supply | AC 220V/380V | ||||
